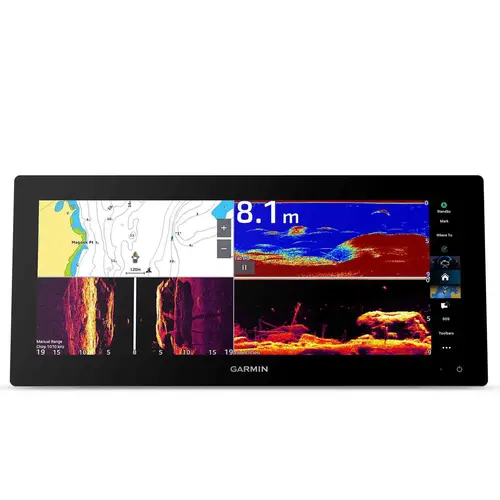

Garmin International 010-03855-01 GPSMAP 1543xsv Multifunction Display with US and Canada Navionics+ Charts Color
Item #: 010-03855-01 by Garmin International
Brand: Garmin International
UPC #: 753759345747
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Ultrawide 15" touchscreen with IPS display combines sleek aesthetics with a sunlight-readable screen and the easy to use functionaliity of existing GPSMAP x3 series chartplotters
- Minimal display borders and edge-to-edge glass create a stunning appearance and make it easy to fit a wide reange of helm configurations, including "floating display" installations
- Preloaded Garmin Navionics+ coastal charts and inland mapping feature Auto Guidance+ technology; plus, there s support for optional Garmin Navionics Vision+ premium map content
Voltage
10-32V
Dimensions
15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)
Application
MFD
Warranty
2 Years
Mounting Hardware
Flush Only
Card Type
MSD
Waterproof
IPX7
Antenna
Internal GPS Antenna
Mount Type
Flush or Bail
Display Color
Color
Diagonal Screen Size
13.6" x 5.1"; 14.5" Diagonal
Display Shape
Horizontal
External Sensors
Multiple
Specific Transducer
Multiple
Transducer Included
Not Included
Transmit Power
Single Channel 1KW/CV/DV
Product Overview
Offering a sleek aesthetic in a 15" edge-to-edge glass format, the GPSMAP 15x3xsv chartplotter clearly expands your viewing horizons. Its ultrawide, high-resolution IPS touchscreen is 74% wider and boasts more pixels than a standard 9" chartplotter, providing enhanced viewing clarity. Plot your course with optional preloaded Garmin Navionics+ mapping or upgrade to premium Garmin Navionics Vision+ charts for high-resolution relief shading and more. It also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well (transducer required; sold separately). Integrate multiple devices from compatible Panoptix and LiveScope sonar to autopilots, radar, cameras and multimedia systems by using Garmin OneHelm, NMEA 2000 and NMEA 0183 networking, J1939 for engines and the Garmin Marine Network. Easily pair your plotter with your other compatible Garmin devices, such as quatix smartwatches, wind transducers, wireless remote controls and more.
