Features
- Lower bound
Material
Tubular steel construction, top-grade plastic parts
Trigger Mechanism
Short path triggering
1000 v insulated
31.12.1899
Calibration length
326,2 mm
Customs tariff number
82041100
Depth gauge [metric]
17,5 mm
Distance housing - square drive
27,5 mm
Drive connector rectangular
9 x 12 mm
Drive type/drive
Rectangular cavity
Fixed setting
31.12.1899
Graduation [lbf·ft]
5 lbf·ft
Lever length drive side [mm]
32 mm
Lever length handle side [mm]
366,5 mm
Mounting height [mm]
19 mm
Net weight [kg]
1 kg
Precision +/-
+/- 3 %
Range of application
Assembly Series assembly Production Maintenance and repair
Reach registration available
31.12.1899
Receptacle width [mm]
24 mm
Scale division [n-m]
5 N·m
Storage/content
Plastic box
Target groups
Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Agriculture Oil & Gas
Test certificate
DIN EN ISO 6789-2:2017
Tightening direction
Left and right
Torque (max.) [lbf·ft]
75 lbf·ft
Torque (max.) [n·m]
100 N·m
Torque (min.) [lbf·ft]
15 lbf·ft
Torque (min.) [n·m]
20 N·m
Torque range (min./max.) [lbf·ft]
15 lbf·ft - 75 lbf·ft
Torque range (min./max.) [n·m]
20 N·m - 100 N·m
Total height [mm]
42,5 mm
Total length [mm]
398,5 mm
Total width [mm]
42,5 mm
Vde certified
31.12.1899
Vernier nm
0,5 N·m
Product Overview

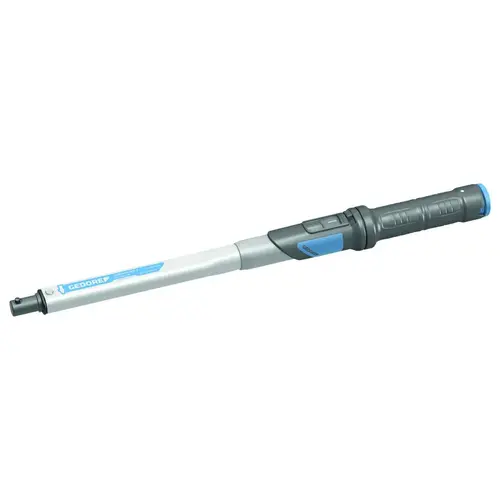

Use: Controlled screw tightening in the most common range of 20 - 100 N m / 15 - 75 lbf ft, Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, For controlled bi-directional tightening, Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm) and high-grade plastic parts, Ergonomically shaped plastic handgrip with calibration aid, Change-over between N m main scale and lbf ft ancillary scale to avoid reading errors when setting the torque wante, With micrometre scale for main N m scale for setting interim values, Release system triggers a tactile and audible signal, Ergonomic system for torque adjustment with reference symbol, Secured adjusting/setting system, Factory depth gauge: 17.5 mm (9x12 mm), Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise, Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
