30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Lower bound
Total height with reaction arm (max.)
21.12.1900
Reach registration available
31.12.1899
Output torque (max.) [n-m]
18.5.1927
Output torque (max.) [lbf-ft]
25.1.1920
Output square (metric)
38,1 mm
Output square (inch)
1.1/2"
Output square
1.1/2"
Net weight [kg]
10,9 kg
Multiplication at the ratio
1:28,5
Input force [lbf·ft]
305 lbf·ft
Eingangskraft [n·m]
410 N·m
Drive connector square female [inch]
3/4"
Drive connector square female (metric)
20,0 mm
Drive connector square (male)
3/4"
Distance output square - start reaction arm (min.)
29.4.1900
Distance output square - end of reaction arm (max)
3.8.1900
Customs tariff number
82041100
Backflow protection
1.1.1900
1000 v insulated
31.12.1899
Total height with reaction arm (min.)
15.12.1900
Total height without reaction arm
18.10.1900
Total length [mm]
230 mm
Total width without reaction arm
21.5.1900
Vde certified
31.12.1899

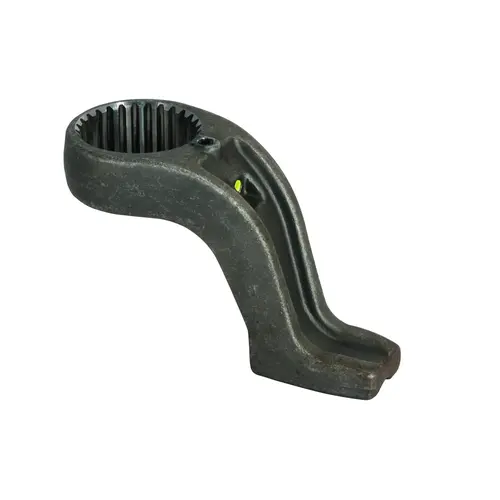

Version reaction arm
Z-Form, cranked
Product Overview
Especially suitable for: Machinery and plant engineering, Cable cars, lifts and masts, Heavy industry, construction sites, Bridge construction, Shipbuilding, aircraft and railway construction, Refineries, plastics industry, Power plants of all kinds, Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections, With a two-stage planet gear, High-performance aluminum housing, Models with gear ratio 1:18, 1:22, 1:28.5, 1:39, All models with return flow protection (RS), With non-destructive overload protection "Slipper" to protect the gearbox, right and left hand, Z-form, offset reaction arm depending on model made of chrome-vanadium steel, Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal, Guaranteed accuracy: Better than +/- 3 % tolerance, To operate with a suitable torque wrench, 4 models with maximum load in the range from max. 6000 N-m to max. 13000 N-m, Output square with hole for Impact sockets with locking pin and ring
Parts list: Torque multiplier DREMOPLUS ALU
Delivery in stable box on pallet
Adjustment table
Detailed technical information is available on request
