Features
- Lower bound
Number Of Hooks
2.1.1900
Screws Included
31.12.1899
Number of Arms
2.1.1900
Use
For removing drive pulleys, wheels, ball bearings etc.
Graduation
x
Spindle Thread Size
G1/2x210mm
1000 v insulated
31.12.1899
3d data available
31.12.1899
Anti-slip device on the spindle
31.12.1899
Can be retrofitted with hydraulic spindle
1.1.1900
Clamping bracket available
31.12.1899
Clamping width (max.) external pulling [mm]
200 mm
Clamping width a2 (max.) internal pulling [mm]
260 mm
Clamping width a2 (min.) internal pulling [mm]
110 mm
Customs tariff number
82055980
Exchangeable spindle tip
1.1.1900
Hook brake available
31.12.1899
Hook can be moved parallel
1.1.1900
Hydraulic spindle optional
1.06/HSP1
Load of the entire puller (max.) [t]
5 t
Net weight [kg]
3,4 kg
Quick release lever available
1.1.1900
Reach registration available
31.12.1899
Reversible arms available
1.1.1900
Spindle anti-slip device
31.12.1899
Spindle holder
G1/2"
Spindle surface coating
Nitro-carburated
Spindle thread length (usable) [mm].
210 mm
Spindle thrust piece type
Kugel & Spitze
Spindle width across flats
22 mm
Thickness of hooked foot at tip
3,5 mm
Tractive force (max.) [t]
5.1.1900
Usable clamping reach [mm]
150 mm
Usable depth of hooked foot d2 [mm]
18 mm
Vde certified
31.12.1899
Version/execution
2-arm pattern
Width across flats [mm]
22 mm
Width of hooked foot [mm]
30 mm

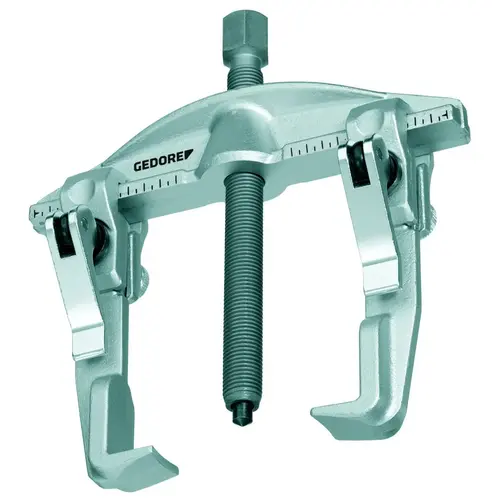

Product Overview
Strong drop forged pattern, Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work, Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required, The quick-action adjustment feature supports the energy-saving and fast operation, Spindle with replaceable ball and tip point, Upgradeable with hydraulic spindle (see table), Upgradeable with hydraulic spindle (see table)
