Features
- Lower bound
Material
Aluminum Alloy
Trigger Mechanism
Short path triggering
Graduation
10.1.1900
Torque Wrench Type
DZ A+S
1000 v insulated
31.12.1899
Calibration length
768 mm
Customs tariff number
82041100
Depth gauge [metric]
45,0 mm
Distance between housing and centre of drive [mm].
18 mm
Drive type/drive
Drive pin
Fixed setting
31.12.1899
Graduation [lbf·ft]
10 lbf·ft
Head height 1 [mm]
35 mm
Lever length drive side [mm]
49 mm
Lever length handle side [mm]
785,5 mm
Net weight [kg]
3 kg
Precision +/-
+/- 3 %
Range of application
Assembly Series assembly Production
Reach registration available
31.12.1899
Receptacle width [mm]
22 mm
Scale division [n-m]
10 N·m
Target groups
Automotive Industry Construction and commercial vehicles Military Mechanical engineering Railway Oil & Gas
Test certificate
DIN EN ISO 6789-2:2017
Tightening direction
Left and right
Torque (max.) [lbf·ft]
450 lbf·ft
Torque (max.) [n·m]
620 N·m
Torque (min.) [lbf·ft]
100 lbf·ft
Torque (min.) [n·m]
140 N·m
Torque range (min./max.) [lbf·ft]
100 lbf·ft - 450 lbf·ft
Torque range (min./max.) [n·m]
140 N·m - 620 N·m
Total height [mm]
35 mm
Total length [mm]
834,5 mm
Total width [mm]
45 mm
Vde certified
31.12.1899
Width of head 1 [mm]
45,0 mm

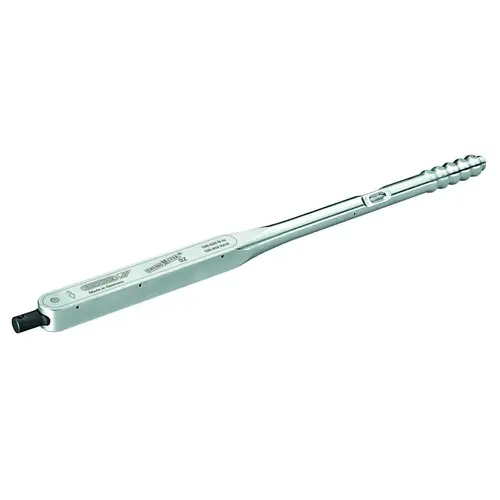

Product Overview
Technical advantage/Function: Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user, Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, Lightweight yet robust (as the housing is made of an aluminum alloy) and resilient, very workshop-friendly, Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)., Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube), Operation only with end fittings with standardized depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories., Large drive cross-section transfers maximum torques, Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, With certificate acc. to DIN EN ISO 6789-2:2017, traceable via in-house DAkkS laboratory to national standards, Pre-set DREMOMETER for serial production wherever the same value always needs to be applied, If ordering, please specify the N m value - if a fixed factory pre-setting is desired (price on request)
