Features
- Lower bound
Material
Aluminum Alloy
Trigger Mechanism
Short path triggering
Graduation
5.1.1900
Standard
ISO 1174 DIN 3120 - A 12,5
Torque Wrench Type
A+S BC
1000 v insulated
31.12.1899
Are there disposal instructions on the battery?
31.12.1899
Calibration length
463 mm
Customs tariff number
82041100
Disposal instructions available in the operating instructions?
31.12.1899
Disposal instructions on tools
31.12.1899
Distance housing - square drive
17,5 mm
Drive connector square (male)
1/2" | 12,5 mm
Drive type/drive
Single square rigid
Fixed setting
1.1.1900
Graduation [lbf·ft]
5 lbf·ft
Head height 1 [mm]
30 mm
Net weight [kg]
1,4 kg
Precision +/-
+/- 3 %
Width of head 1 [mm]
35,0 mm
Version/execution
A S Fuse
Vde certified
31.12.1899
Total width [mm]
35 mm
Total length [mm]
539 mm
Total height [mm]
30 mm
Torque range (min./max.) [n·m]
40 N·m - 200 N·m
Torque range (min./max.) [lbf·ft]
30 lbf·ft - 150 lbf·ft
Torque (min.) [n·m]
40 N·m
Torque (min.) [lbf·ft]
30 lbf·ft
Torque (max.) [n·m]
200 N·m
Torque (max.) [lbf·ft]
150 lbf·ft
Tightening direction
Right
Test certificate
DIN EN ISO 6789-2:2017
Target groups
Automotive Industry Construction and commercial vehicles Military Mechanical engineering Railway Oil & Gas
Scale division [n-m]
5 N·m
Reach registration available
31.12.1899
Range of application
Assembly Series assembly Production

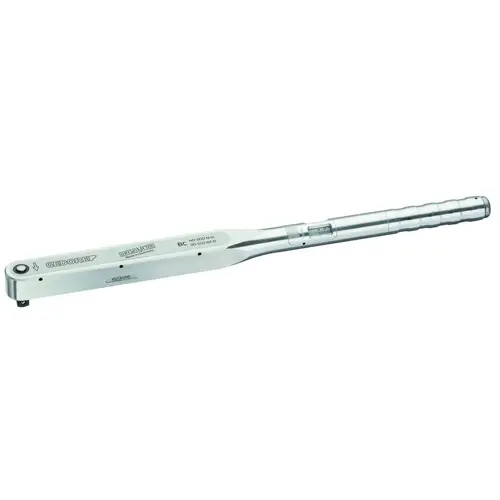

Product Overview
Technical advantage/Function: Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user, Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, Lightweight yet robust (as the housing is made of an aluminum alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Single- and double-square drive for controlled bi-directional tightening, Use: Controlled screw tightening in the range from 6 - 3000 N m, For use in almost all industrial manufacturing areas, Features: With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards, Automatic short-path actuation with tactile impulse and audible signal, Dual scale with corresponding scale graduation (see table), Type B, BC, C with push-button release, Pre-set DREMOMETER for serial production wherever the same value always needs to be applied, If ordering, please specify the N m value - if a fixed factory pre-setting is desired (price on request)
