Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Width of head 1 [mm]
35,0 mm
Vde certified
31.12.1899
Total width [mm]
35 mm
Total length [mm]
462 mm
Total height [mm]
38 mm
Torque range (min./max.) [n·m]
25 N·m - 120 N·m
Torque range (min./max.) [lbf·ft]
18 lbf·ft - 90 lbf·ft
Torque (min.) [n·m]
25 N·m
Torque (min.) [lbf·ft]
18 lbf·ft
Torque (max.) [n·m]
120 N·m
Torque (max.) [lbf·ft]
90 lbf·ft
Tightening direction
Right
Test certificate
DIN EN ISO 6789-02:2017
Target groups
Automotive Industry Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
Storage/content

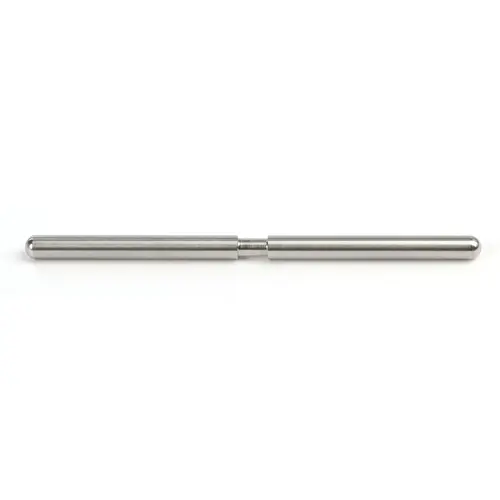

in plastic box with aluminum extension tube
Scale division [n-m]
5 N·m
Reach registration available
31.12.1899
Range of application
Assembly Series assembly Production Maintenance and repair
Precision +/-
+/- 3 %
Net weight [kg]
2,2 kg
Head height 1 [mm]
30 mm
Graduation [lbf·ft]
5 lbf·ft
Fixed setting
31.12.1899
Drive type/drive
Single square rigid
Drive connector square (male)
1/2" | 12,5 mm
Distance housing - square drive
17,5 mm
Customs tariff number
82041100
Calibration length
373 mm
1000 v insulated
31.12.1899
Torque Wrench Type
BR
Standard
DIN 3120 - A 12,5 ISO 1174
Trigger Mechanism
Short path triggering
Material
Aluminum Alloy
