Features
- Lower bound
Material
Aluminum Alloy
Trigger Mechanism
Short path triggering
Standard
DIN 3120 - B 20 ISO 1174
Torque Wrench Type
DSL
1000 v insulated
31.12.1899
Calibration length
719 mm
Customs tariff number
82041100
Distance housing - square drive
22,5 mm
Drive connector square (male)
3/4" | 20 mm
Drive type/drive
Double square rigid
Fixed setting
31.12.1899
Graduation [lbf·ft]
10 lbf·ft
Head height 1 [mm]
35 mm
Net weight [kg]
2,9 kg
Precision +/-
+/- 3 %
Range of application
Assembly Series assembly Production Maintenance and repair
Reach registration available
31.12.1899
Scale division [n-m]
10 N·m
Storage/content
Plastic box
Target groups
Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
Test certificate
DIN EN ISO 6789-2:2017
Tightening direction
Left and right
Torque (max.) [lbf·ft]
400 lbf·ft
Torque (max.) [n·m]
550 N·m
Torque (min.) [lbf·ft]
80 lbf·ft
Torque (min.) [n·m]
110 N·m
Torque range (min./max.) [lbf·ft]
80 lbf·ft - 400 lbf·ft
Torque range (min./max.) [n·m]
110 N·m - 550 N·m
Total height [mm]
35 mm
Total length [mm]
812 mm
Total width [mm]
45 mm
Vde certified
31.12.1899
Width of head 1 [mm]
45,0 mm

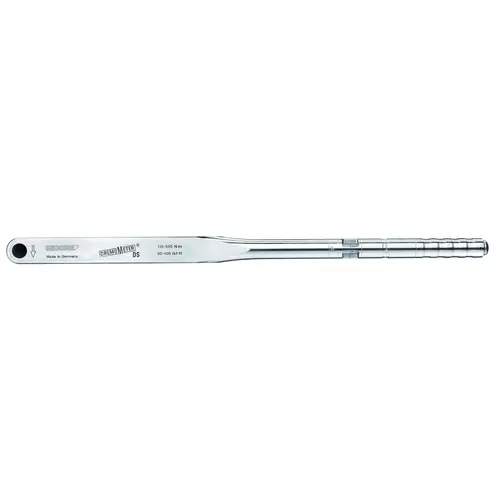

Product Overview
Use: Controlled screw tightening in the most common range of 110 - 550 N m / 80 - 400 lbf ft, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Dual scale with a scale graduation of 10 N m and 10 lbf ft, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminum alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening
