Features
- Lower bound
Number of Teeth
5.2.1900
Material
Tubular steel construction, top-grade plastic parts
Trigger Mechanism
Short path triggering
Graduation
10.1.1900
Standard
ISO 1174 DIN 3120 - B 20
1000 v insulated
31.12.1899
Calibration length
863,8 mm
Customs tariff number
82041100
Distance housing - square drive
34,5 mm
Drive connector square (male)
3/4" | 20 mm
Drive type/drive
Push-through square
Fixed setting
31.12.1899
Graduation [lbf·ft]
10 lbf·ft
Head height 1 [mm]
31 mm
Net weight [kg]
3,6 kg
Precision +/-
+/- 3 %
Range of application
Assembly Production Maintenance and repair
Reach registration available
31.12.1899
Return angle
10 °
Scale division [n-m]
10 N·m
Storage/content
Box
Target groups
Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
Test certificate
DIN EN ISO 6789-2:2017
Tightening direction
Left and right
Torque (max.) [lbf·ft]
405 lbf·ft
Torque (max.) [n·m]
550 N·m
Torque (min.) [lbf·ft]
80 lbf·ft
Torque (min.) [n·m]
110 N·m
Torque range (min./max.) [lbf·ft]
80 lbf·ft - 405 lbf·ft
Torque range (min./max.) [n·m]
110 N·m - 550 N·m
Total height [mm]
51 mm
Total length [mm]
965 mm
Total width [mm]
69 mm
Vde certified
31.12.1899
Vernier nm
1 N·m
Width of head 1 [mm]
69,0 mm
Product Overview

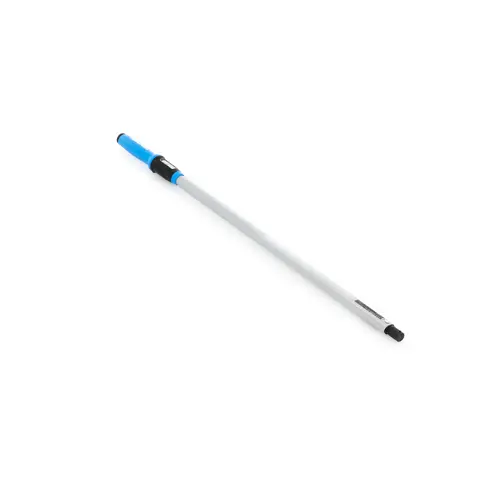

Use: Controlled screw tightening in the most common range of 110 - 550 N m / 80 - 405 lbf ft, Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades, Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%, incl. traceable test certificate (DIN EN ISO 6789-2:2017), For controlled bi-directional tightening, 3/4" square drive through with pin lock, Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts, New ergonomic handle, shaped according to the natural grip position of the hand, clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle, Double scale N m / lbf ft and vernier are protected from abrasion and contamination by an enlarged viewing window, With vernier scale for N-m main scale for setting intermediate scale values; lbf-ft setting only via main scale, Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers, Scale line positioned directly above the scale prevents reading errors (parallax errors), Unit labeling integrated in the scale frame and also protected against abrasion via viewing windows,, Precise jump-off mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached, incl. roll away protection, prevents rolling away when the tool is put down
