30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Lower bound
Material
31CrV3
Weight
0,460 lbs
Standard
similar to DIN 3113 - form B ISO 3318 ISO 7738
1000 v insulated
31.12.1899
Customs tariff number
82041100
Head height 1 [mm]
13,5 mm
Head height 2 [mm]
8 mm
Height of offset 1
23,5 mm
Mouth position 1
15°
Width of head 2 [mm]
42 mm
Width of head 1 [mm]
27,8 mm
Width across flats 1 [af]
3/4"
Vde certified
31.12.1899
Total width [mm]
41 mm
Total length [mm]
260 mm
Total height [mm]
25 mm
Ring offset
10°
Reach registration available
31.12.1899
Net weight [kg]
0,209 kg
Product Overview

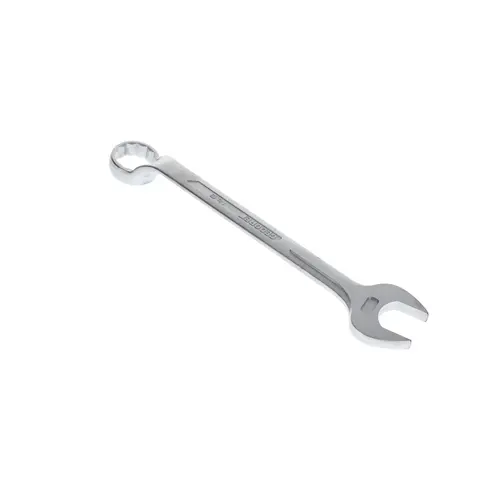

GEDORE vanadium steel 31CrV3, chrome-plated, With same size each end, Chrome-vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined, Ring: cranked and 10 degree angled, with UD profile for gentle power transmission, from SW 1.3/8" 12-edge ring, Jaw: ground precisely to exact nominal size for optimum contact areas, Slim ribbed open end for added strength guarantees maximum torques, Overloading indicated by deformation, The offset ring ensures a better grip on deep-seated or inset nuts or bolts, Top-grade industrial quality for the hardest of continuous use
