30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Lower bound
Trigger Mechanism
Friction clutch
1000 v insulated
31.12.1899
Are there disposal instructions on the battery?
31.12.1899
Customs tariff number
82041100
Disposal instructions available in the operating instructions?
31.12.1899
Disposal instructions on tools
31.12.1899
Drive connector square (male)
1/4" | 6,3 mm
Drive type/drive
Single square ratchet
Epa-/esd-model
31.12.1899
Fixed setting
31.12.1899
Net weight [kg]
0,235 kg
Precision +/-
+/- 6 %
Range of application
Assembly Series assembly Production Quality control Maintenance and repair
Reach registration available
31.12.1899
Target groups
Automotive Electronics industry Industry Precision mechanics Military Mechanical engineering Service Control cabinet construction
Test certificate
DIN EN ISO 6789-2:2017
Tightening direction
Right
Torque (max.) [n·m]
5 N·m
Torque (min.) [n·m]
1 N·m
Torque range (min./max.) [n·m]
1 N·m - 5 N·m
Total length [mm]
195 mm
Vde certified
31.12.1899
Vernier nm
0,05 N·m
Product Overview

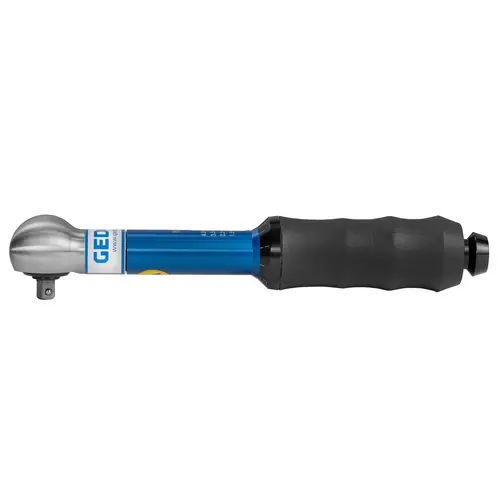

Use: Controlled screw tightening in the range of 1 - 5 N m, Ideal for assembly work where controlled tightening with low torque values is required (e.g. electronic hardware sector, precision mechanics etc.), Features: Adjustable torque wrench - with scale, 1/4" square drive with ball locking device, With integrated ratchet-function for controlled clockwise tightening, Working accuracy: +/- 6 % tolerance of set torque, Acc. to DIN EN ISO 6789, traceable to national standards, Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible, Micrometer graduation: 0.05 N m, 2 models in the range 1 - 10 N m, Lightweight, but robust and corrosion-resistant construction design, Very convenient non-slip rubber handgrip, EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications, Scope of delivery: Torque wrench Typ TSC SLIPPER, Test certificate acc. to DIN EN ISO 6789, Delivery in sturdy cardboard packaging
