Features
- Lower bound
Width of hooked foot [mm]
27 mm
Width across flats [mm]
17 mm
Version/execution
In robust plastic case
Vde certified
31.12.1899
Usable depth of hooked foot d2 [mm]
7 mm
Usable clamping reach [mm]
100 mm
Tractive force (max.) [t]
2,5
Thickness of hooked foot at tip
3,7 mm
Swivel hook
31.12.1899
Spindle anti-slip device
31.12.1899
Reversible arms available
31.12.1899
Reach registration available
31.12.1899
Quick release lever available
31.12.1899
Net weight [kg]
2,2 kg
Hydraulic spindle optional
-
Hook can be moved parallel
31.12.1899
Hook brake available
31.12.1899
Exchangeable spindle tip
31.12.1899
Customs tariff number
82055980
Clamping width (max.) external pulling [mm]
90 mm
Clamping bracket available
31.12.1899
Can be retrofitted with hydraulic spindle
31.12.1899
Anti-slip device on the spindle
31.12.1899
3d data available
31.12.1899
1000 v insulated
31.12.1899
Spindle Thread Size
M 14x1,5 x 140
Graduation
31.12.1899
Screws Included
31.12.1899
Product Overview

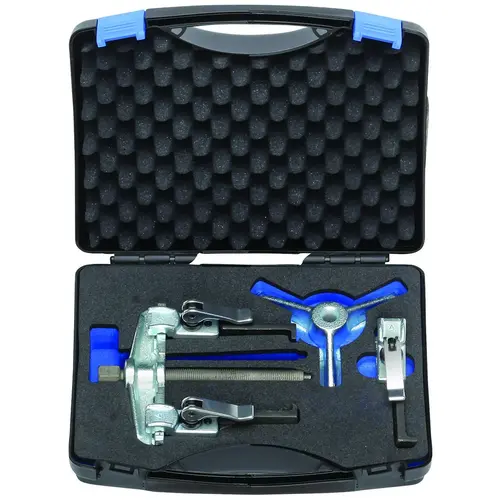

Contents: 1 spindle, 1 cross-beam each 2- and 3-arm pattern and 3 quick-release pulling legs, Second spindle in the set 1.07/K-1-SE safes working time, 2. spindle in case 1.07/K-1-SE saves working time
Parts list: E-106/103 Traverse 2-armed 140 mm
E-107/103 Cross beam 3-arm 140 mm
106/A-100-SE Pull-off hook with quick release clamp 100 mm (3x)
E-1.1406140 Spindle 17, M14x1.5, 140 mm (2x)
107/199-SE Plastic case with foam insert for 1.07/K-1-SE
Parts list: E-106/103 Traverse 2-armed 140 mm
E-107/103 Cross beam 3-arm 140 mm
106/A-100-SE Pull-off hook with quick release clamp 100 mm (3x)
E-1.1406140 Spindle 17, M14x1.5, 140 mm (2x)
107/199-SE Plastic case with foam insert for 1.07/K-1-SE
