Features
- Lower bound
Width of head 1 [mm]
44,0 mm
Vernier nm
1 N·m
Vde certified
31.12.1899
Total width [mm]
55 mm
Total length [mm]
605 mm
Total height [mm]
47 mm
Torque range (min./max.) [n·m]
60 N·m - 300 N·m
Torque range (min./max.) [lbf·ft]
45 lbf·ft - 220 lbf·ft
Torque (min.) [n·m]
60 N·m
Torque (min.) [lbf·ft]
45 lbf·ft
Torque (max.) [n·m]
300 N·m
Torque (max.) [lbf·ft]
220 lbf·ft
Tightening direction
Left and right
Test certificate
DIN EN ISO 6789-2:2017
Target groups
Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
Storage/content
Plastic box
Scale division [n-m]
10 N·m
Return angle
7,5 °
Reach registration available
31.12.1899
Range of application
Assembly Production Maintenance and repair
Precision +/-
+/- 3 %
Net weight [kg]
1,4 kg
Head height 1 [mm]
38,4 mm
Graduation [lbf·ft]
10 lbf·ft
Fixed setting
31.12.1899
Drive type/drive
Mushroom head
Drive connector square (male)
1/2" | 12,5 mm
Distance housing - square drive
22 mm
Customs tariff number
82041100
Calibration length
511,1 mm
1000 v insulated
31.12.1899
Trigger Mechanism
Short path triggering
Material
Tubular steel construction, top-grade plastic parts
Number of Teeth
17.2.1900
Product Overview

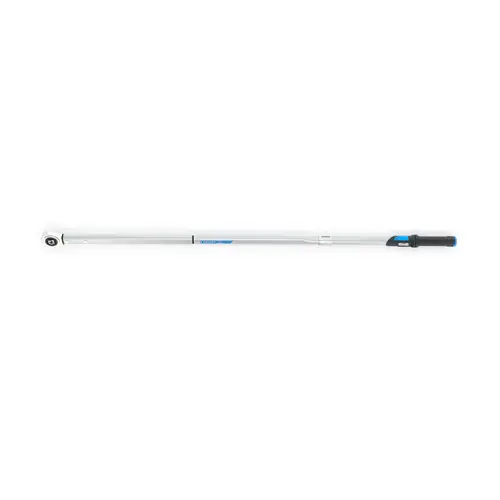

Use: Controlled screw tightening in the range from 60 - 300 N m / 45 - 220 lbf ft, Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, For controlled bi-directional tightening, Models DMK: 1/2" mushroom head interchangeable square with push-button releasing and a ball-locking mechanism. From Model No. DMK 400 with 3/4" push-through square and a pin-locking mechanism, Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts, Ergonomically shaped plastic handgrip with calibration aid, Change-over between N m main scale and lbf ft ancillary scale to avoid reading errors when setting the torque wanted, With micrometre scale for main N m scale for setting interim values, Release system triggers a tactile and audible signal, Ergonomic system for torque adjustment with reference symbol, Provision for rapid setting with hexagon allen key, not included, Secured adjusting/setting system
