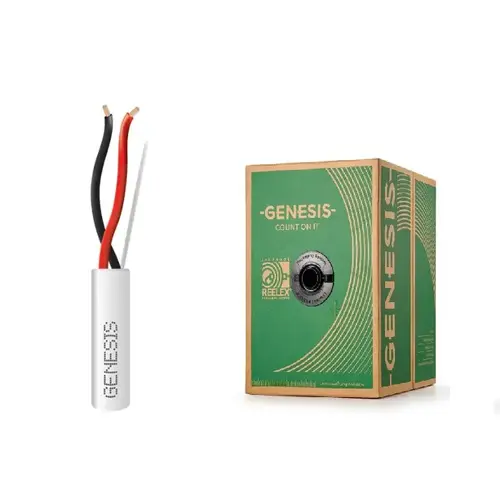

Genesis 11181101 Security and Control Cable

Item #: 11181101 by Genesis

See reviewsSee reviews

$190.02

/each
SAVE UP TO 19.00

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Product Type

Access Control Part/Accessory

Series

Parts/Accessories

Outside Diameter

0.148 Inch

Application

Security, Controls, Audio, Low-Voltage Applications

Wire Gauge

18 AWG

Number of Strands

19

Operating Temperature

-20° to 60°C

Product Length

1000 Feet

Conductor Material

Bare Copper

Insulation Material

Polypropylene

Capacitance

22.7 pF/ft

Insulation Thickness

0.006 Inch

Jacket Material

PVC

Jacket Thickness

0.015 Inch

Number of Conductors

2 Inch

Standards

Flame Rating UL 1685 Vertical Tray; RoHS Compliant; ETL Listed

Function Family

Part/Component

Insulation Color

Black; Red

Manufacturer Parent

Resideo Technologies

Cable Rating

General Purpose

Rip Cord

Yes

Cable Color

White

Lay Length

4 Inch

Cable Listing

CL2; CM; Sunlight Resistant

Conductor Type

Stranded

Rated Voltage

300V

Velocity of Propagation

67%

DC Resistance

6.66 Ohms/1000ft. at 20°C

Sub-Series

EAC_Wires_Genesis_1

Product Overview
18 AWG 2 Stranded Conductors, Plenum CMP/FT6, 1000ft Reel-in-a-Box, Natural Off White
