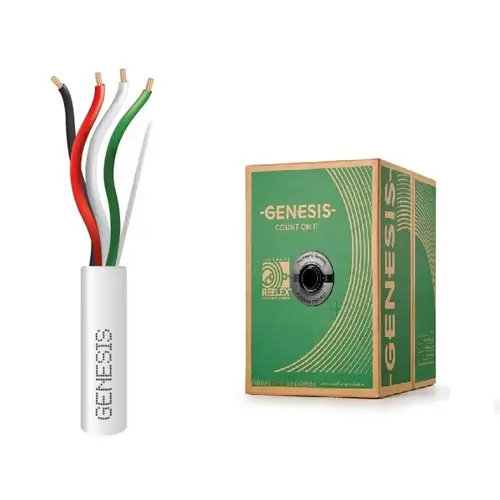

Genesis 31155512 Security and Control Cable
Item #: 31155512 by Genesis
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Product Type
Access Control Part/Accessory
Outside Diameter
0.172 Inch
Application
Security, Controls, Audio, Low-Voltage Applications
Wire Gauge
18 AWG
Number of Strands
19
Operating Temperature
-20° to 75°C
Product Length
500 Feet
Conductor Material
Bare Copper
Insulation Material
Plenum PVC
Capacitance
32.2 pF/ft
Insulation Thickness
0.007 Inch
Jacket Material
Plenum PVC
Jacket Thickness
0.015 Inch
Number of Conductors
4
Standards
Flame Rating NFPA 262 (Plenum), CSA C22.2 No. 2556 (FT6); RoHS Compliant; ETL Listed
Function Family
Part/Component
Insulation Color
Black; Red; White; Green
Manufacturer Parent
Resideo Technologies
Cable Rating
Plenum; FT6
Rip Cord
Yes
Cable Color
Natural
Lay Length
4.09 Inch
Cable Listing
CL3P; FPLP; CMP; FT6
Conductor Type
Stranded
Rated Voltage
300V
Velocity of Propagation
55%
DC Resistance
6.66 Ohms/1000ft. at 20°C
Sub-Series
EAC_Wires_Genesis_4
