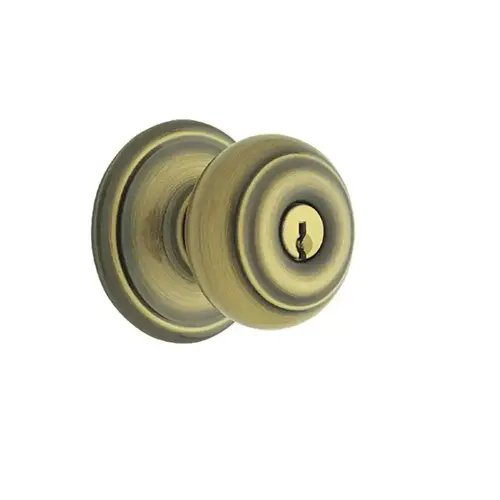

Schlage Residential F80 GEO 609 Georgian Knob Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Antique Brass Finish
Item #: F80 GEO 609 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156844968
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Box Pack
- Storeroom Function - Outside Knob/Lever Fixed; Entry by Key Only; Inside Knob/Lever Always Unlocked
- Applications: Residential single- and multi-family doors
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Satin Brass Blackened
Function
80-Storeroom Lock
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Design
Georgian Knob
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Grade
ANSI/BHMA Grade 2
Keyway
Schlage C
Cylinder Type
Conventional Cylinder
Finish Description
Antique Brass
Knob style
GEO-Georgian
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Keying Charges
Residential-Conventional
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2"
Latch Type
Dead
Product Height
2-3/4 Inch
Strike Type
Radius
Finish Family
Antique Brass
Included Components
Keyed Storeroom Knobs; Roses; Latch; Strike; Mounting Hardware
Product Material
Zinc
Standards
ANSI/BHMA A156.2-2017; ANSI/BHMA A156.39-2015; UL Listed; cUL
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Storeroom
Product Projection
2-5/16 Inch
Features
Outside Knob/Lever Fixed, Entrance by Key only; Inside Knob/Lever Always Unlocked
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Knob Style Family
Round Flat Knob
Sub-Series
F80-GEO
Keying
KA2
Item Weight
1.35 lbs per EA
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
609
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
No Of Pins
5 Pin Cylinder
ANSI/BHMA Standards
F81
Keyed
Yes
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Knob
Georgian Knob
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Projection
2-5/16"
Product Overview
F80Storeroom Knob LockFeatures:
- Outside knob/lever fixed
- Entrance by key only
- Inside knob/lever always unlocked
- ANSI/BHMA A156.2-2017 Commercial Grade 2
- ANSI/BHMA A156.39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw, circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- 619 - Satin Nickel
- 609 - Antique Brass
- 626 - Satin Chrome
- 716 - Aged Bronze
