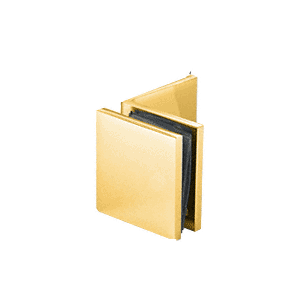

CRL SGC039GP Gold Plated Fixed Panel Square Clamp With Large Leg
Item #: SGC039GP by CR Laurence
See reviews See
reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Clamps Contribute to 'All-Glass' Appearance
- Requires 3/4" (19 mm) Hole in Glass
- Larger Leg Covers More Wall Surface
- Use Monolithic Tempered Glass
Hole Required in Glass
3/4" (19 mm)
Clamp Size
2" x 2" (51 x 51 mm)
Leg Size
2" x 2" (51 x 51 mm)
Finish
Gold Plated
Mounting Type
Wall Mount
Material
Brass
Width
2
Glazing Thickness
3/8 to 1/2
Finish/Color
Gold Plated
Height
2
Leg Width
2
Mounting Style
Wall mount
Height (Inches)
2
Leg Width (Inches)
2
Width (Inches)
2
CRL Fixed Panel Square Clamp (With Large Leg mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal. 90 degree leg provides extra strength. Larger leg covers more tile area.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
.
