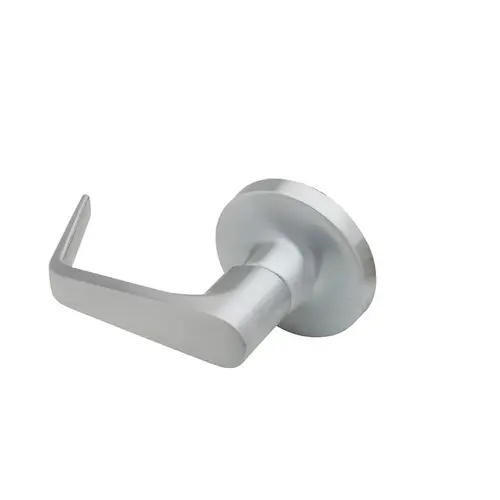

Falcon T12 D 626 Grade 1 Dane Half Dummy Door Lever from the T Collection, Satin Chrome
Item #: T12 D 626 by Falcon
UPC #: 043156884605
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Pressure Release Levers
- Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
- Heavy Duty Compression Springs Behind the Rose Provide Consistent Lever Return and Prevent Lever Sag
- UL10C 3 Hour A Label
- Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Non Handed Design
- Limited 10 Year Warranty
- Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
- Handing: Locks are non-handed.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
- Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- Electrified Functions: Available in 24 VDC .185 AMP.
Design
Dane
Series
T Series
Function
Dummy
Finish
Satin Chrome
Product Class
Commercial
BHMA Certification
Grade 1
Configuration
Lever Set
Shape
Drop, Flat
Material
Brass, Steel
ADA
Yes
ANSI Certification
A156.2
Fire Rated
Yes
Panic Proof
Yes
Door Thickness
1-3/4", 2-1/8"
Approved for Commercial Use
Yes
Theme
Modern
Handing
Left, Reversible, Right
Handle Material
Metal
Latch Faceplate
Square Corner
Handle Style
Lever
Color Code
626/US26D
Grade
ANSI/BHMA Grade 1
Application
Retail; Multi Family; Government; Industrial
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Finish Description
Satin Chrome
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
DAN-Dane
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL Listed
Function Family
Dummy
Product Projection
3-1/4 Inch
Trim Material
Solid Pressure Cast Zinc (Lever)
Features
Proven Compression Spring Design Supports Levers Eliminating Lever Sag and Provides Years of Reliable Service; Pressure Release Outside Lever Disengages when Locked to Protect Internal Mechanisms
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
5 Inch
Knob/Lever Size
5 Inch
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_Falcon_64
Product Overview
Single Dummy Trim, Dane Lever, Satin Chrome
Simply put, the Falcon T Series lock is the most versatile lockset in the industry. This extra heavy duty lock can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick re-keying. Redesigned with a compression spring behind the cylinder, the T Series is now stronger than ever and lever sag has been virtually eliminated. This adaptable lock is well suited for either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military.
Can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
