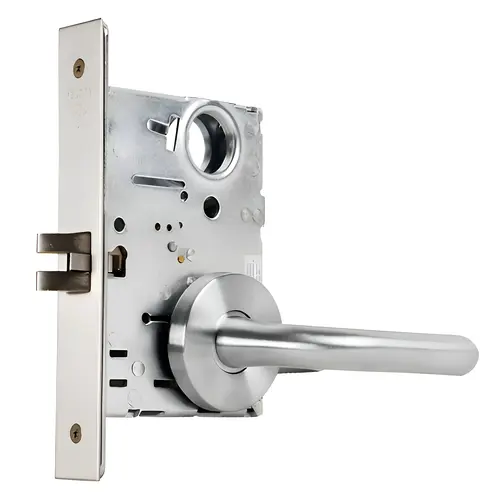

Falcon MA101 SG 626 MA Series Passage Mortise Lock, Satin Chrome

Item #: MA101 SG 626 by Falcon

1 reviews

In Stock $292.04 /each

SAVE UP TO 29.20

Buying in bulk

Falcon MA101 SG 626 MA Series Passage Mortise Lock, Satin Chrome

Item #: MA101 SG 626 by Falcon

1 1 reviews

In Stock $292.04 /each

SAVE UP TO 29.20

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Offers Highest Level of Security
  • Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
  • Backset: 2-3/4” only.
  • Forged Escutcheons for Added Strength
  • UL Listed
  • Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
  • Hubs: Hardened steel.
  • Ability to Easily Rehand the Lock in the Field
  • Limited 1 Year Warranty
  • Handing: Right hand is standard; left hand optional. Reversible in the field.
  • Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
  • Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
  • Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
  • Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
  • Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
  • Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
  • Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
  • Electrified Functions: Available in 12 or 24 VDC.
  • ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
  • UL: 3 hour A label.

Finish

Satin Chrome

Function

101-Passage

Design

Sutro Gala

Material

Brass

Approved for Commercial Use

Yes

Theme

Modern

Handing

Left, Reversible, Right

Latch Faceplate

Square Corner

UL Listed

Yes

Product Class

Commercial

BHMA Certification

Grade 1

Configuration

Lever Set

ADA

Yes

Fire Rated

Yes

Manufacturer Warranty

10 Year

Panic Proof

Yes

Trim Width

2.5625

Trim Height

2.5625

ANSI Certification

A156.13

Handle Width

2.25

Handle Projection

2.6875

Door Thickness

1-3/4", 2"

Shape

Drop, Round

Backset

2-3/4"

Color Code

626/US26D

Finish Description

Satin Chrome

Lever Style

S-Sutro

Rose/Escutcheon Trim

Gala Rose

Product Type

Mortise Lock

Grade

ANSI/BHMA Grade 1

MA Series Passage, Sutro Lever with Gala Rose, Mortise Lever Latch with 4-7/8" ANSI Strike. 626 Satin Chrome
MA SeriesGrade 1 mortise lever and knob locks

The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications. And, with generous trim and finish styles, the MA Series makes it easy to match existing or new design choices. Cylinders offered include the Small Format Interchangeable Core cylinders that can be removed quickly for easy, fast re-keying in high turnover environments.

Features:
  • Forged escutcheon for added strength
  • Solid brass cylinder and plug
  • 1" stainless steel deadbolt with security roller pins
  • Two piece stainless steel anti-friction latch bolt
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Reversible handing without opening lock chassis case*
  • All lever designs meet ADA requirements
  • *Excludes MA551
Product specifications: ANSI/BHMA:
  • Certified ANSI/BHMA 156.13, Series 1000, Grade 1.
UL:
  • Listed 3-hour fire door, A label.
Functions:
  • 26 mechanical and 2 electrified (12 or 24 VDC)
    commercial functions available.
Finishes:
  • Levers: available in BHMA 605, 606, 613, 619, 622, 625, 626, 630, and 643e.
  • Knobs: available in BHMA 619, 622, and 643e.
  • Mortise and rim cylinder housings: available in 605, 606, 613, 619, 622, 626, 629, 630, and 643e.
Door thickness:
  • Standard offering only accepts door thicknesses of
    1 3/4" - 1 7/8".
  • If door thickness is between 1 7/8" and 2 1/2" customer must specify thickness.
Backset:
  • 2 3/4" only.
Case:
  • Cold formed steel, zinc dichromate plated, .090” thick.
Hubs:
  • Hardened steel.
Handing:
  • Right hand is standard; left hand optional.
  • Reversible in the field.
Cylinders:
  • Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified.Mortise and cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Hotel function cylinders available.
Keyways:
  • "G" keyway standard on conventional cylinders. "A" keyway standard on SFIC cylinders.
Bind resistant trim:
  • Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch bolt:
  • Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection.
Dead bolt:
  • 1" throw, stainless steel with two 3/16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplates:
  • (armored front) 1 1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike:
  • Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Indicator options:
  • Occupied/Vacant or Locked/Unlocked.
Architectural specifications:
  • Provide mortise locksets that comply with ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims and conventional mortise cylinders.
  • Locksets comply with UL10B - neutral pressure and UL10C/UBC 7-2 –positive pressure testing requirements. All locks shall be UL listed for 3 hour fire door.
  • Lock case shall be non-handed, reversible without opening the lock case, and shall be manufactured of zinc dichromate plated steel. Lock case shall be interchangeable for knob or lever applications without modifying the chassis, and shall be constructed with a screw configuration that limits access to operating parts.
  • Latchbolt shall be 2-piece anti-friction type manufactured from stainless steel, with a standard 2 3/4" backset, a full 3/4" throw and be field reversible. Deadbolt shall have 1" throw and shall be constructed of stainless steel, incorporating two 3/16" diameter security roller pins. All lever designs shall meet the federal ADA and state disability requirements.
  • All trim shall be cast, forged, or wrought and through bolted with thread patch coated screws. Lever trim to have individual heavy duty springs for lever return, and independent rotation in both directions. Return to door style levers meets the 1/2" California State Fire Marshall requirement.
  • Spindles to be independent, designed to 'break-away' at a maximum of 480 in./lbs. to prevent damage to the lock chassis.
  • Provide standard non-handed curved lip strikes.
  • Cylinders to be secured by a dual retainer.
  • Acceptable manufacturer: Falcon Lock
