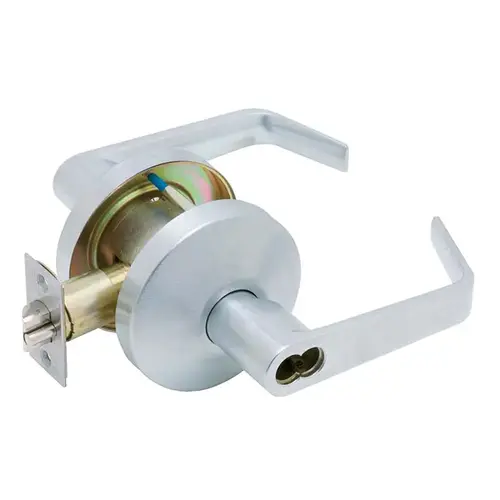

Falcon Grade 2 Assisted Living Dane Door Lever with Falcon Core from the B Collection Satin Chrome

Item #: B611BD D 626 by Falcon

Brand: Falcon

See reviewsSee reviews
See reviews summary
In Stock

$258.10

/each
SAVE UP TO 25.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available

Finish: Satin Chrome

Lever Style: Dane - D

Dane - D
Quantum - Q

Cylinder: Less Small Format Interchangeable Core (Less SFIC)

6 pin Conventional Cylinder
Less 6 Pin Cylinder
Less Small Format Interchangeable Core (Less SFIC)
QTY
-
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Ideal for New Construction and Retrofitting Existing Applications
  • Door Thickness: 1 3/8” to 2” standard.
  • Backset: 2 3/4” standard. 2 3/8” also available.
  • Lever Trim Has Individual Heavy Duty Springs for Lever Return and to Prevent Lever Sag
  • Trim is Through Bolted to Provide Strength
  • Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
  • Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
  • Adjustable Door Thickness from 1-3/8" to 2"
  • Limited 10 Year Warranty
  • Handing: Locks are non-handed.
  • Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
  • Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
  • Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
  • Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
  • Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
  • Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
  • Screws: Furnished with combination screws for use in wood or metal doors and frames.
  • ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
  • UL: 3-hour, A Label.

Finish

626 - Satin Chrome

Function

B611-Dormitory/Corridor Lock

Series

B Series

Design

Dane

Shape

Drop, Flat

Width

4.625

Backset

2-3/4" Backset - Square corner, 1-1/8" x 2-1/4" - Standard (57435)

Door Thickness

1-3/8", 2"

Rose Diameter

3.5

ADA

Yes

ANSI Certification

A156.2

BHMA Certification

Grade 2

Cylinder

Less Small Format Interchangeable Core (Less SFIC)

Fire Rated

Yes

Manufacturer Warranty

10 Year

Panic Proof

Yes

Material

Steel

Approved for Commercial Use

Yes

Theme

Modern

Handing

Left, Reversible, Right

Latch Faceplate

Square Corner

Projection

2.625

UL Listed

Yes

Product Class

Commercial

Configuration

Lever Set

Package Volume

0

ANSI Function

F90 - Dormitory

Grade

Grade 2

Special Marks

Small format interchangeable core

Cylinder Type

SFIC Prep Less Core

Package Qty

1

Number of Pins

7-Jun

Color Code

626/US26D

Rose/Escutcheon Design

3-1/2 In. Diameter

Base Material

Brass or Bronze

Lever/Knob Design

D - Dane

Keyway

None (Select for Less Cylinder Option)

Keyed

Yes

Handle Type

Lever

Strike

ANSI 1-1/4" x 4-7/8" with 1-3/16" Lip Length - Standard (5164)

Keying

None (Select for Less Cylinder Options)

Electronic

No

Door Handing

Non-Handed

Lever Style

Dane - D

Standard Strike

1-1/4" x 4-7/8", ANSI, Square corner, no box

Lock Type

Cylindrical

Duty Level

Medium Duty

Standard Latch

1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset

Product Overview

Dormitory/Corridor Lock, Dane Lever, 2-3/4" Backset, 4-7/8" ANSI Strike, SFIC Prep, Less Core, Satin Chrome

When you need a tough, reliable lock for government/military, retail, industrial or multi-family project, you need a Falcon B-Series Lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying and are compatible with SFIC products from other manufacturers. Most important, they are backed by one of the best names in the industry.

Features an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers.
