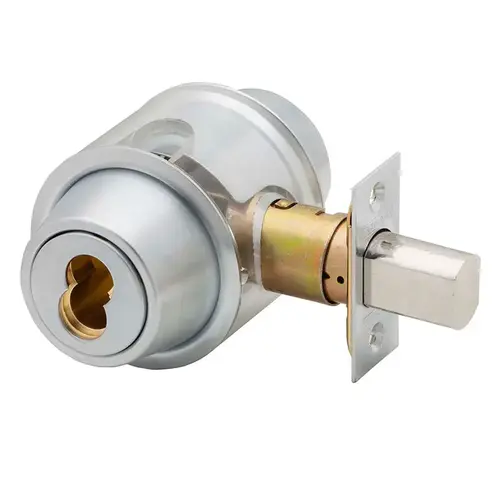

Schlage Commercial B563J 626 Grade 2 Classroom Deadbolt Less Full Size Interchangeable Core with 12287 Latch and 10094 Strike Satin Chrome Finish
Item #: B563J 626 by Schlage Commercial
Brand: Schlage Commercial
UPC #: 500227177559
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Classroom Deadbolt - Deadbolt Thrown or Retracted by Key Outside, Inside Turn Unit Will Retract Bolt Only
- ANSI Certified A156.36
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Finish
626 - Satin Chrome
Series
B500 Series
Backset
Adjustable 2-3/8 or 2-3/4
Strike
Square Corner Deadbolt Strike
Function
Classroom Deadbolt
Thickness
1-5/8 In. - 2 In.
Strike Number
10-094
Latch Number
12-288
Latch Type
Deadbolt
ANSI Function
E0172 - Classroom Deadbolt
Special Marks
Full size/large format interchangeable core
Dust Box
None
Strike Width
1-1/8 In.
Latch Backset Dim
Adjustable 2-3/8 In. and 2-3/4 In.
Cylinder Type
Schlage FSIC Less Core
Lock Face Size
2-1/4 In. x 1 In.
Package Qty
1
Bolt Protection
1 In.
Color Code
626/US26D
Strike Type
Flat
Strike Height
2-3/4 In.
Type
Standard Less Full Size
Alternate Part Number-1
181492
Pack Size
1
Door Locks & Knobs Product Type
Deadbolts
MADE IN THE USA
Yes
Package Quantity
1
Master Key
False
UL Listed
No
AbilityOne
No
ADA Compliant
No
UNSPSC
46171501
Door Thickness
1.375 - 1.75 in.
Keying
None (Select for Less Cylinder Options)
Material
Wrought brass
GSA Approved
No
Keyway
S123 Keyway
TAA/BAA Compliant
Yes
Backset Size
2-3/8 in., 2-3/4 in., Adjustable
Grade
Grade 2
ANSI/BHMA Standards
E0172
Keyed
Yes
Collection
B500_Series
Cylinder
J - FSIC Less Core
Electronic
No
Standard Strike
10-094: Square corner, no box, 1-1/8" x 2-3/4"
Keys Included
2
Lock Type
Deadbolts
Duty Level
Medium Duty
Cylinder and Keyways
6-pin Conventional Cylinder (C Keyway)
Segment
Door Hardware
Standard Latch
12-288: Deadbolts - Adjustable 2-3/8" or 2-3/4"- Square corner, 1" x 2-1/4", 1" Housing Diameter
Diameter
2-5/8"
Dimension
2-5/8" Diameter
Manufacturer Warranty
Limited 3 Year Mechanical Warranty
UL Listing Type
UL Listed for 3 Hour Fire Door
Door Range
1-3/8" to 1-7/8"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
1-1/2" or 2-1/8" Bore
Finish code
626
Latch Faceplate Dimension
1" x 2-1/4" and 1" Diameter
No of inners
1
Style
Deadbolt
Handle Type
Non-Handed
Commercial/Residential
Commercial
Door Handing
Non-Handed
Hardware Included
Hardware Included
Security Grade
ANSI Grade 2
Assembled Product Depth
5.75 in.
Assembled Product Height
3 in.
Assembled Product Width
4.5 in.
Lockset Function
Single Cylinder
Product Overview
Classroom Deadbolt, Grade 2, Adjustable 2-3/8" or 2-3/4" Backset, FSIC Prep, Less Core, Satin Chrome
