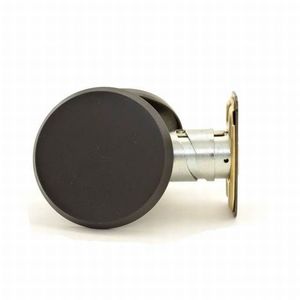

Grade 2 Turn by Blank Plate Deadbolt with 12287 Latch and 10094 Strike Oil Rubbed Bronze Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Lock B581 613Click To Copy Grade 2 Turn by Blank Plate Deadbolt with 12287 Latch and 10094 Strike Oil Rubbed Bronze Finish

Item #: B581 613 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$82.11

/each
SAVE UP TO 8.21

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 72 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door Bolt with Trim - Deadbolt Thrown or Retracted by Turn Unit Only, Outside Blank Plate
  • ANSI Certified A156.36
  • 1-3/8" to 1-7/8" Door Range
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2

Finish

Oil Rubbed Bronze

Series

B500 Series

Thickness

1-3/8 In. - 1-7/8 In.

Strike Number

10-094

Latch Number

12-288

Color

Dark Oxidized Satin Bronze Oil Rubbed

Latch Type

Deadbolt

ANSI Function

E01112 - Door Bolt

Dust Box

None

Strike Width

1-1/8 In.

Latch Backset Dim

Adjustable 2-3/8 In. and 2-3/4 In.

Lock Face Size

2-1/4 In. x 1 In.

Package Qty

1

Bolt Protection

1 In.

Color Code

613/US10B

Strike Type

Flat

Strike Height

2-3/4 In.

Backset

Adjustable Backset 2-3/8" and 2-3/4"

Strike

Square Corner Deadbolt Strike

Function

Turn by Blank Plate

Type

Standard

Product Type

Parts

Grade

Grade 2

Handing

Non-Handed

Cylinder Included

No

Strike Size

2-3/4" x 1-1/8"

Alternate Part Number-1

141527

Latch Bolt Type

Deadbolt

Latch Bolt Faceplate Size

1" x 2-1/4"

Door Bore Size

1-1/2", 2-1/8"

Lock Category

Deadbolts

Door Thickness Min

1-3/8"

Latch Bolt Face Type

Drive-In, Radius Corner, Square Corner

Latch Bolt Throw

1"

Door Thickness Max

1-7/8"

Knob/Lever Style

Inside Thumbturn

Height

3

Length

5.75

Width

4.5

Product Overview

Door Bolt, Inside Turn x Blank Plate, Grade 2, Adjustable 2-3/8" or 2-3/4" Backset, Oil Rubbed Bronze
