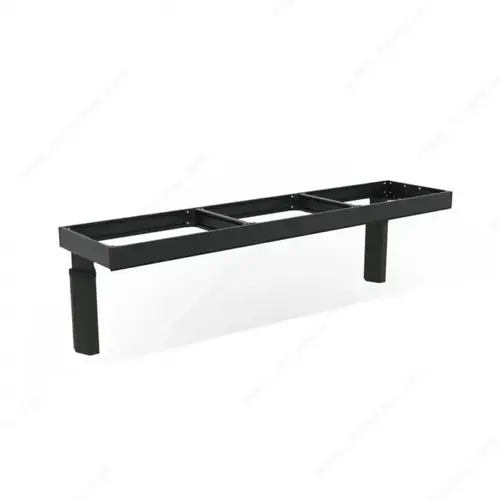

Granberg WEBSO1250288 BaseLift 6600 - Base Lift System Anthracite
Item #: WEBSO1250288 by Granberg
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Anthracite
Collection
Baselift 6600
Electrical Connection
120V/60Hz/10A
Standards and Certifications
ETL, ADA, cETLus
Production Time
Special Online Order
Product Dimension - Height
27 1/2 to 39 3/8 in
Product Dimension - Width
94 1/8 in
Product Overview
A powerful and flexible lift system for height-adjustable countertops
The BaseLift 6600 system is is a strong, electrically operated countertop lift system that combines functionality, ergonomics, and modern design. It is specifically designed to provide a comfortable working environment for both standing and seated users in kitchens where flexibility and accessibility are essential.
Baselift 6600 is a straight, wall-mounted countertop lift with a lifting capacity of 160 kg (352 lbs). Ideal even for stone countertops.
The frame is supplied in parts to minimise shipping costs and is designed for quick and easy on-site assembly. The installer can also adjust the frame system's width and depth on site.
The open design beneath the countertop provides generous legroom, creating an accessible and comfortable working environment.
Installations beneath the countertop such as motors, water, and waste pipes can be easily concealed with telescopic cover panels for a sleek, unified appearance.
The powerful motors operate steplessly, raising and lowering the countertop quickly and quietly, with an integrated safety system that protects against crushing hazards and ensures safe operation.
The lift system is suitable for cooktops and sinks with shallow bowls.
Choose between 3 kits with different lay out.
Advantages And Benefits
- Smooth and quiet height adjustment : The system is electrically operated with low-noise motors that allow stepless height adjustment to the desired working height, giving the user full control over kitchen ergonomics.
- High lifting capacity : handles heavy materials : With a lifting capacity of up to 160 kg (352 lbs), the BASELIFT 6600 can handle heavy countertops, including stone or composite materials.
- Flexible : Frame sections can be cut on-site to achieve the desired width - Frame depth 560-590 mm (22.0" - 23.2"), adjustable to suit adjacent cabinets.
- Safe : Integrated safety switches at the front and on the sides.
- Plug and play : Easy to connect electronics and motor system.
- 3D available and preloaded in BIMobject software.
Included Product(S)
The BASELIFT 6600 Kit is delivered in flat packs for easy transport and handling. Assembly is carried out by the customer following the clear step-by-step guide.
Delivered in parts for on-site adjustment.
Frame system supplied in sections, available in three widths: 890, 1590, and 2390 mm (35.0", 62.6", and 94.1").
Important Information
- Motor-driven straight worktop lift
- Height adjustable from 700-1000 mm( 27.6"- 9.4") above the floor (excluding
worktop).
- Maximum load: 160 kg (352 lbs)
- Wall-mounted motors
- Center sections adjustable sideways to fit sink and hob
- Worktop angle adjustable to compensate for uneven walls
- Sinks with a maximum bowl height of 120 mm(4.72") can be integrated.
- The worktop depth should be 15 mm (0.59") shallower than adjacent worktops (to allow a gap for tiling and movement)
