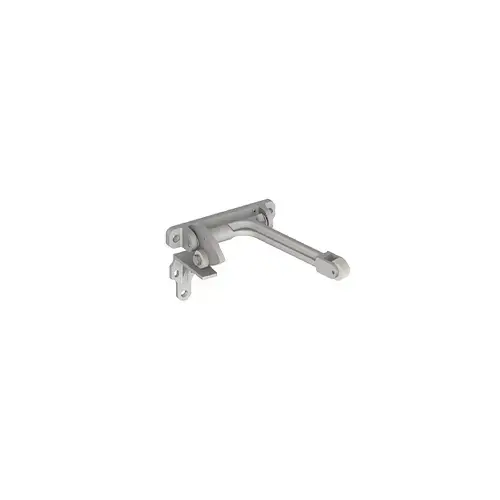

Hager 055125 298D Gravity Coordinator, Satin Chrome Finish

Item #: 055125 by Hager

UPC #: 041359551256

See reviewsSee reviews
See reviews summary
In Stock

$64.88

/each
SAVE UP TO 6.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 505 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Allows Inactive Door To Close Before Active Door
  • For Use With Automatic Flushbolts Only
  • Gravity Action Arm And Door Bracket Are Adjustable For Easy Installation
  • Non-Handed
  • Cast Brass With Rubber Roller And Nylon Cam Roller

Finish

Satin Chrome

Series

Hager Trim and Auxiliary Series

Color Code

626/US26D

Projection

7" (178 mm)

Material

Cast Brass with rubber roller and nylon cam roller

Fasteners

Two #12 x 1" OPHWS, Two #6 x 3/4" FPHWS, One #8 x 3/4" FPHWS, Two #8 x 3/4" TPHWS

Mounting Bracket

1" x 5-15/32" (25 mm x 139 mm)

FINISHES - TRIM

US26D - SATIN CHROMIUM

Dimension

1" x 5-15/32" Mounting Plate; 7" Projection

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Hazardous Material

No

Finish code

US26D

No of inners

1

Product Overview
Gravity Coordinator
Notes:
  • For use on pairs of doors to allow inactive door to close before active door
  • 297D Coordinator recommended when using self-latching flush bolts on inactive door
  • For use with automatic flush bolts only
  • Recommended for use with flush top metal doors only when using a metal door with automatic flush bolts
  • 297C Carry Bar is needed when installing an astragal
  • The carry bar will keep the astragal from damage when the inactive door is opened first
  • Gravity action arm and door bracket are adjustable on the job for ease of installation
  • For use on pairs of doors with astragal on active door up to 4' (1219 mm) wide or with astragal on inactive door up to 3'4" (1016 mm) wide or with astragal on both doors up to 2-10" (864 mm) wide
  • Non-handed
  • Maximum astragal overlap- 7/8" (22 mm)
  • Minimum rail height- 2-1/2" (64 mm)
  • Do not use spring hinges with coordinating device

Certifications:
ANSI A156.3 Type #21B
Finishes:
US3, US10, US10B, US26D
Notes:
  • For use on pairs of doors to allow inactive door to close before active door
  • 297D Coordinator recommended when using self-latching flush bolts on inactive door
  • For use with automatic flush bolts only
  • Recommended for use with flush top metal doors only when using a metal door with automatic flush bolts
  • 297C Carry Bar is needed when installing an astragal
  • The carry bar will keep the astragal from damage when the inactive door is opened first
  • Gravity action arm and door bracket are adjustable on the job for ease of installation
  • For use on pairs of doors with astragal on active door up to 4' (1219 mm) wide or with astragal on inactive door up to 3'4" (1016 mm) wide or with astragal on both doors up to 2-10" (864 mm) wide
  • Non-handed
  • Maximum astragal overlap- 7/8" (22 mm)
  • Minimum rail height- 2-1/2" (64 mm)
  • Do not use spring hinges with coordinating device
