Guhring 9003050061500 Jobber Length Drill Bit: Letter C, 118 degree, Cobalt

Item #: 9003050061500 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$29.18

/each
SAVE UP TO 2.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

101.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

305

Point Type

Standard

Drill Bit Material

Cobalt

Spiral Type

Regular

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.2421

Drill Bit Size Range (Decimal Inch)

0.2000 - 0.2500

Drill Point Angle

118 degrees

Flute By Diameter Ratio

5xD

Flute Length (mm)

63.00

Maximum Drilling Depth (Decimal Inch)

2.1170

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.2421

Shank Length (mm)

38.00

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.022 to 0.000 mm

Drill Bit Finish/Coating

Oxide

Drill Bit Size (Letter)

C

Maximum Drilling Depth (mm)

53.78

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview

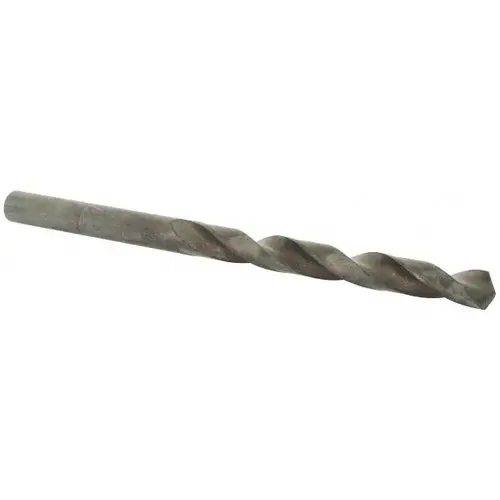

Jobber Length Drill Bit: Letter C, 118 degree, Cobalt Oxide Coated, 101 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 305
