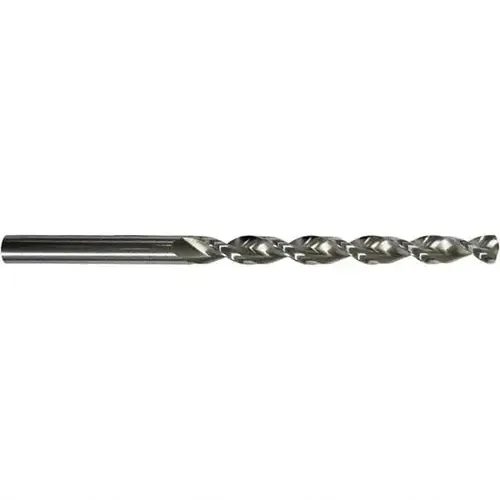

Guhring 9005010067000 Taper Length Drill Bit: 0.2638" Dia, 130 degree Bright/Uncoated

Item #: 9005010067000 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$72.97

/each
SAVE UP TO 7.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 79 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Cylindrical

Overall Length (mm)

148.00

Standards

DIN 340

Tool Material

High Speed Steel

Cutting Direction

Right Hand

Series

501

Point Type

Standard

Coating/Finish

Bright/Uncoated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.2638

Drill Bit Size (mm)

6.70

Drill Point Angle

130 degrees

Flute Length (Decimal Inch)

3.8189

Flute Length (mm)

97.00

Material Grade

M-2

Maximum Drilling Depth (Decimal Inch)

3.8189

Shank Diameter (Decimal Inch)

0.2638

Shank Diameter (mm)

6.70

Shank Length (Decimal Inch)

2.0079

Shank Length (mm)

51.00

Tool Performance

General Purpose

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.022 mm

Maximum Drilling Depth (mm)

97.00

Specification Number

DIN 340

Threaded Shank

No

Web Configuration

Tapered

Web Thinning

Web-Thinned

Flute Length x Diameter Ratio

10xD

Product Overview
Taper Length Drill Bit: 0.2638" Dia, 130 degree Bright/Uncoated, 3.8189" Flute Length, 5.8268" OAL, RH Cut, Parabolic Flute, Cylindrical Shank, Series 501
