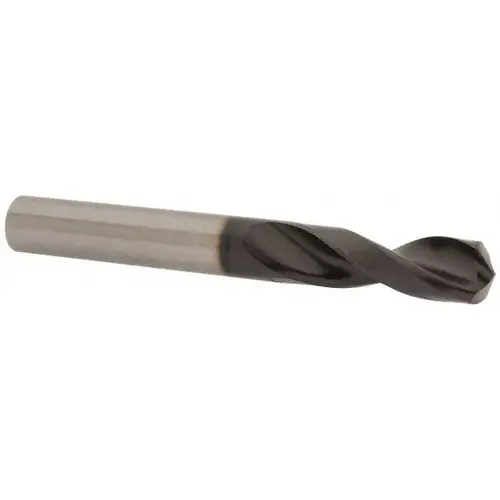

Screw Machine Length Drill Bit: 0.4062" Dia, 130 degree, Powdered Metal Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9005150103200 Screw Machine Length Drill Bit: 0.4062" Dia, 130 degree, Powdered Metal Coated

Item #: 9005150103200 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$122.72

/each
SAVE UP TO 12.27
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

DIN 1897

Tool Material

Powdered Metal

Cutting Direction

Right Hand

Series

515

Point Type

Standard

Drill Length Type

Stub

Coating/Finish

Coated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.4062

Drill Bit Size (Inch)

13/32

Drill Bit Size Range (Decimal Inch)

0.4000 to 0.4500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

1.6930

Material Grade

PMASP60

Maximum Drilling Depth (Decimal Inch)

1.0830

Overall Length (Decimal Inch)

3.5040

Primary Workpiece Material

Cast Iron

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.027 mm

Drill Point Angle

130

Maximum Drilling Depth (mm)

27.52

Specification Designation

DIN

Specification Number

DIN 1897

Web Configuration

Parallel

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.4062" Dia, 130 degree, Powdered Metal Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 515
