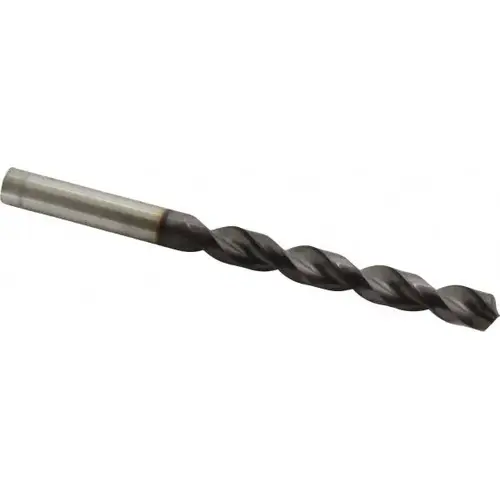

Guhring 9005300100000 Jobber Length Drill Bit: 0.3937" Dia, 130 degree, Powdered Metal

Item #: 9005300100000 by Guhring

See reviewsSee reviews
See reviews summary

$77.35

/each
SAVE UP TO 7.73
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Diameter (Decimal Inch)

0.3937

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Overall Length (Inch)

5-1/4

Maximum Drilling Depth (Decimal Inch)

2.8350

Material Grade

PM-ASP-60

Flute Length (Inch)

3-7/16

Flute By Diameter Ratio

5xD

Drill Point Angle

130 degrees

Drill Bit Size Range (Decimal Inch)

0.3500 - 0.4000

Drill Bit Size (Decimal Inch)

0.3937

Coolant Through

No

Drill Bit Material

Powdered Metal

Point Type

Cone Relief

Series

530

Cutting Direction

Right Hand

Standards

DIN 338

Number of Flutes

2

Shank Type

Straight-Cylindrical

Flute Type

Parabolic

Shank Length (mm)

46.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

Y

Drill Bit Diameter Tolerance

-0.022 to 0.000 mm

Drill Bit Finish/Coating

FIREX

Maximum Drilling Depth (mm)

72.00

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 0.3937" Dia, 130 degree, Powdered Metal FIREX Coated, 5-1/4" OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 530
