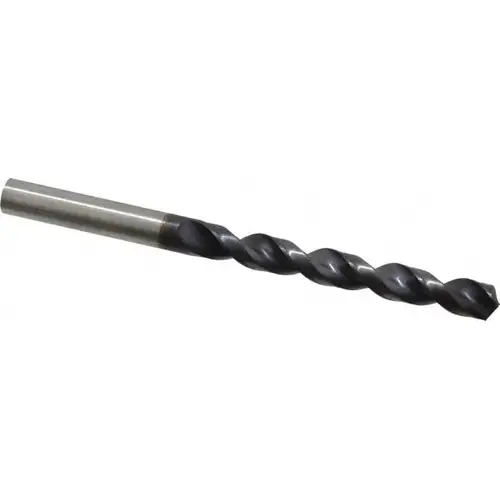

Jobber Length Drill Bit: 0.3346" Dia, 130 degree, Powdered Metal - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9.0053E+12-XCP5 Jobber Length Drill Bit: 0.3346" Dia, 130 degree, Powdered Metal - pack of 5

Item #: 9.0053E+12-XCP5 by Guhring

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

530

Point Type

Cone Relief

Drill Bit Material

Powdered Metal

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.3346

Drill Bit Size Range (Decimal Inch)

0.3000 - 0.3500

Drill Point Angle

130 degrees

Flute By Diameter Ratio

5xD

Flute Length (Inch)

2-15/16

Material Grade

PM-ASP-60

Maximum Drilling Depth (Decimal Inch)

2.4510

Overall Length (Inch)

4-19/32

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.3346

Shank Length (mm)

42.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

Y

Drill Bit Diameter Tolerance

-0.022 to 0.000 mm

Drill Bit Finish/Coating

FIREX

Maximum Drilling Depth (mm)

62.25

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 0.3346" Dia, 130 degree, Powdered Metal FIREX Coated, 4-19/32" OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 530
