Jobber Length Drill Bit: 13.5 mm Dia, 130 degree, High Speed Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

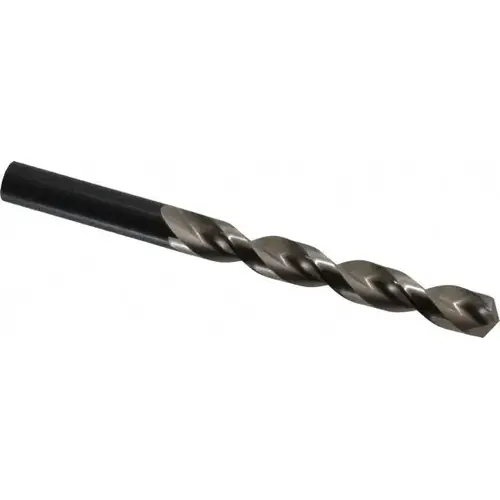

Guhring 9005490135000 Jobber Length Drill Bit: 13.5 mm Dia, 130 degree, High Speed Steel

Item #: 9005490135000 by Guhring

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$118.80

/each
SAVE UP TO 11.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Overall Length (mm)

160.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

549

Point Type

Standard

Drill Bit Material

High Speed Steel

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.5315

Drill Bit Size (mm)

13.50

Drill Bit Size Range (Decimal Inch)

0.5000 - 0.6500

Drill Point Angle

130 degrees

Flute By Diameter Ratio

5xD

Flute Length (Inch)

4-1/4

Flute Length (mm)

108.00

Maximum Drilling Depth (Decimal Inch)

3.4550

Overall Length (Inch)

6-19/64

Primary Workpiece Material

Aluminum

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.5315

Shank Length (mm)

52.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.027 to 0.000 mm

Drill Bit Finish/Coating

Nitride

Drill Bit Size Range (mm)

12.50 - 15.00

Maximum Drilling Depth (mm)

87.75

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 13.5 mm Dia, 130 degree, High Speed Steel Nitrided Land Coated, 6-19/64" OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 549
