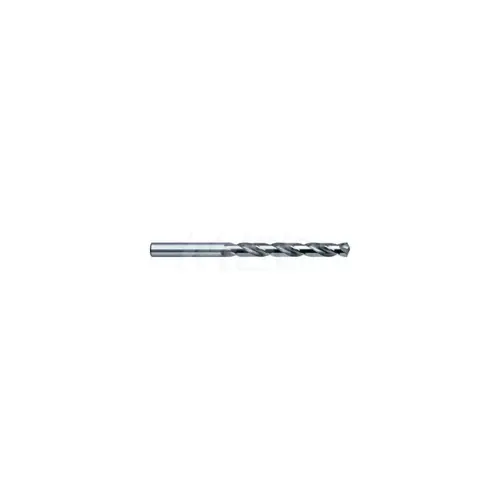

Jobber Drill: 1.35 mm Dia, 130 deg Point, Cobalt Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9006050013500 Jobber Drill: 1.35 mm Dia, 130 deg Point, Cobalt Bright/Uncoated

Item #: 9006050013500 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$8.11

/each
SAVE UP TO 0.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

40.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

605

Point Type

Split

Drill Bit Material

Cobalt

Spiral Type

Regular

Tool Application

Self-Centering

Coating/Finish

Bright/Uncoated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.0531

Drill Bit Size (mm)

1.35

Drill Bit Size Range (Decimal Inch)

0.0500 - 0.1000

Drill Point Angle

130 degrees

Flute By Diameter Ratio

5xD

Flute Length (mm)

18.00

Material Grade

M35

Maximum Drilling Depth (Decimal Inch)

0.6290

Primary Workpiece Material

Titanium Alloy

Primary Workpiece Material Code

M

Shank Diameter (Decimal Inch)

0.0531

Shank Diameter (mm)

1.35

Shank Length (mm)

22.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.014 mm

Drill Bit Size Range (mm)

0.00 - 2.00

Maximum Drilling Depth (mm)

15.98

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Drill: 1.35 mm Dia, 130 deg Point, Cobalt Bright/Uncoated, 40.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series 605
