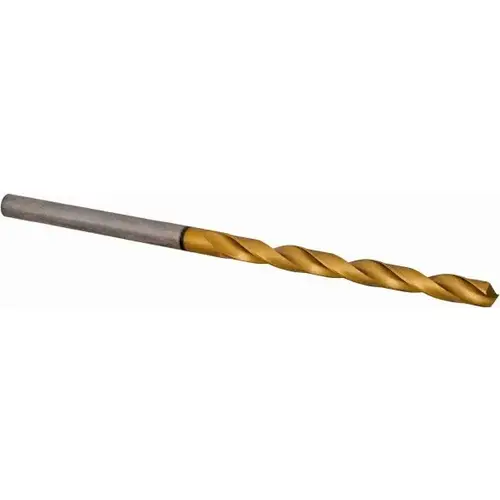

Guhring 9006510025500 Jobber Length Drill Bit: 2.55 mm Dia, 118 degree, High Speed Steel

Item #: 9006510025500 by Guhring

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$11.44

/each
SAVE UP TO 1.14
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

57.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

651

Point Type

Standard

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Coolant Through

No

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.1004

Drill Bit Size (mm)

2.55

Drill Bit Size Range (Decimal Inch)

0.1000 - 0.1500

Drill Point Angle

118 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

1.1811

Flute Length (mm)

30.00

Material Grade

M2

Maximum Drilling Depth (Decimal Inch)

1.1811

Overall Length (Decimal Inch)

2.2441

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.1004

Shank Diameter (mm)

2.55

Shank Length (Decimal Inch)

1.0630

Shank Length (mm)

27.00

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.014 mm

Drill Bit Finish/Coating

Titanium Nitride

Drill Bit Size Range (mm)

2.00 - 3.00

Maximum Drilling Depth (mm)

30.00

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 2.55 mm Dia, 118 degree, High Speed Steel TiN Coated, 57 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 651
