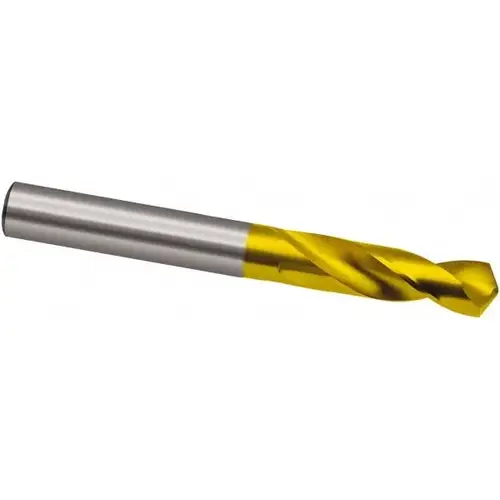

Screw Machine Length Drill Bit: 17.5 mm Dia, 118 degree Point, High Speed Steel Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9006530175000 Screw Machine Length Drill Bit: 17.5 mm Dia, 118 degree Point, High Speed Steel Coated

Item #: 9006530175000 by Guhring

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$150.75

/each
SAVE UP TO 15.08
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

123.00

Number of Flutes

2

Standards

DIN 1897

Tool Material

High Speed Steel

Cutting Direction

Right Hand

Series

653

Point Type

Cone Relief

Drill Length Type

Stub

Spiral Type

Regular

Coating/Finish

Coated

Coolant Through

No

Drill Bit Grade

Heavy Duty

Drill Bit Size (Decimal Inch)

0.6890

Drill Bit Size (mm)

17.50

Drill Bit Size Range (Decimal Inch)

0.6000+

Flute By Diameter Ratio

3xD

Flute Length (mm)

62.00

Material Grade

M2

Maximum Drilling Depth (Decimal Inch)

1.4070

Overall Length (Decimal Inch)

4.8425

Primary Workpiece Material

Cast Iron

Shank Diameter (Decimal Inch)

0.6890

Shank Diameter (mm)

17.50

Shank Length (Decimal Inch)

2.4016

Shank Length (mm)

61.00

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

h8

Drill Bit Size Range (mm)

17.00+

Drill Point Angle

118

Maximum Drilling Depth (mm)

35.75

Specification Designation

DIN

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 17.5 mm Dia, 118 degree Point, High Speed Steel Coated Coated, 123 mm OAL, Right Hand Cut, Straight-Cylindrical Shank, Series 653
