Screw Machine Length Drill Bit: 0.2362" Dia, 130 degree, Cobalt Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

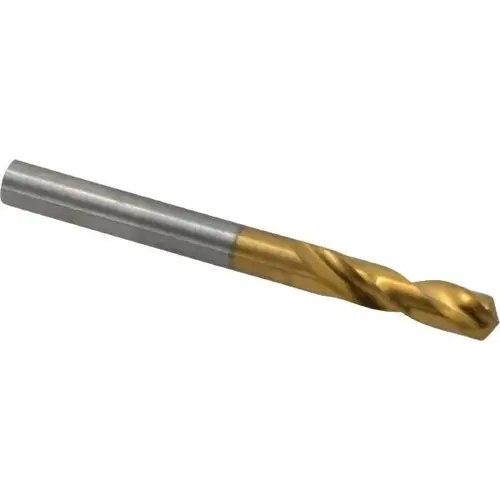

Guhring 9006590060000 Screw Machine Length Drill Bit: 0.2362" Dia, 130 degree, Cobalt Coated

Item #: 9006590060000 by Guhring

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$33.31

/each
SAVE UP TO 3.33
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

DIN 1897

Tool Material

Cobalt

Cutting Direction

Right Hand

Series

659

Point Type

Standard

Drill Length Type

Stub

Coating/Finish

Coated

Coolant Through

No

Drill Bit Grade

Heavy Duty

Drill Bit Size (Decimal Inch)

0.2362

Drill Bit Size Range (Decimal Inch)

0.2000 to 0.2500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

1.1020

Maximum Drilling Depth (Decimal Inch)

0.7480

Overall Length (Decimal Inch)

2.5980

Primary Workpiece Material

Titanium Alloy

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.018 mm

Drill Point Angle

130

Maximum Drilling Depth (mm)

19.00

Specification Designation

DIN

Specification Number

DIN 1897

Web Configuration

Parallel

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.2362" Dia, 130 degree, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 659
