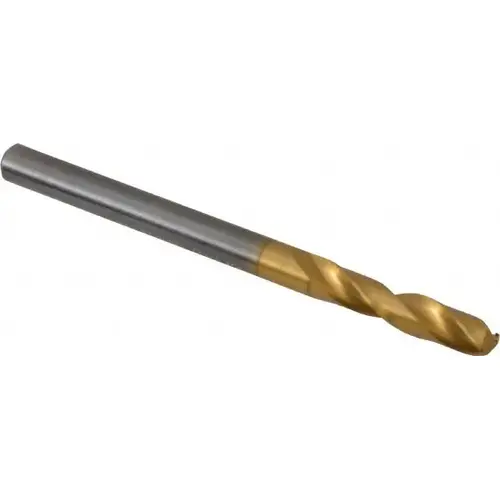

Screw Machine Length Drill Bit: 0.1719" Dia, 140 degree, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Guhring 9012420043700 Screw Machine Length Drill Bit: 0.1719" Dia, 140 degree, Solid Carbide Coated

Item #: 9012420043700 by Guhring

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$145.23

/each
SAVE UP TO 14.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

58.00

Number of Flutes

2

Standards

DIN 6539

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

1242

Point Type

SU

Drill Length Type

Screw Machine

Spiral Type

Regular

Coating/Finish

Coated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.1719

Drill Bit Size (Inch)

11/64

Drill Bit Size Range (Decimal Inch)

0.1500 to 0.2000

Flute By Diameter Ratio

3xD

Flute Length (mm)

24.00

Material Grade

Submicron

Maximum Drilling Depth (Decimal Inch)

0.6870

Primary Workpiece Material

Cast Iron

Tool Performance

High Performance

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Point Angle

140

Maximum Drilling Depth (mm)

17.45

Specification Designation

DIN

Specification Number

DIN 6539

Web Configuration

Parallel

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.1719" Dia, 140 degree, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1242
