Jobber Length Drill Bit: #3, 118 degree, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

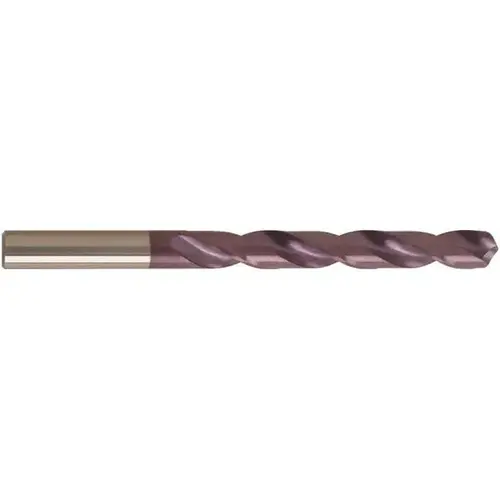

Guhring 9024640054100 Jobber Length Drill Bit: #3, 118 degree, Solid Carbide

Item #: 9024640054100 by Guhring

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$82.33

/each
SAVE UP TO 8.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

93.00

Number of Flutes

2

Cutting Direction

Right Hand

Series

2464

Point Type

Faceted

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.2130

Drill Bit Size (Wire)

#3

Drill Bit Size Range (Decimal Inch)

0.2000 - 0.2500

Drill Point Angle

118 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

2.2400

Flute Length (mm)

57.00

Material Grade

K40

Maximum Drilling Depth (Decimal Inch)

1.9250

Overall Length (Decimal Inch)

3.6600

Primary Workpiece Material

Aluminum

Primary Workpiece Material Code

N

Shank Diameter (mm)

5.41

Shank Length (mm)

36.00

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.012 to 0.000 mm

Drill Bit Finish/Coating

FIREX

Maximum Drilling Depth (mm)

48.89

Specification Designation

DIN

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: #3, 118 degree, Solid Carbide FIREX Coated, 93 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2464
