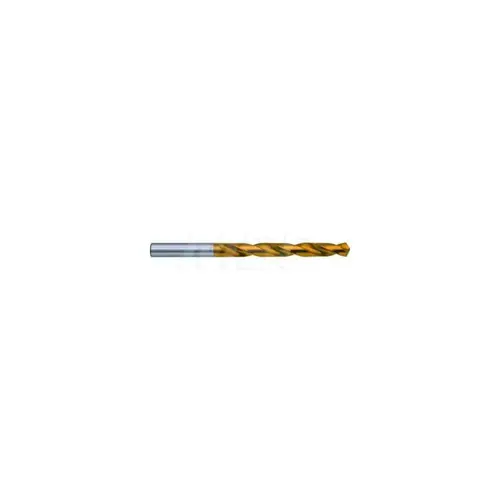

Guhring 9055190083300 Jobber Length Drill Bit: 21/64" Dia, 118 degree, Cobalt

Item #: 9055190083300 by Guhring

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$40.31

/each
SAVE UP TO 4.03
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

117.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

5519

Point Type

Four Facet

Drill Bit Material

Cobalt

Spiral Type

Regular

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.3281

Drill Bit Size (Inch)

21/64

Drill Bit Size Range (Decimal Inch)

0.3000 - 0.3500

Drill Point Angle

118 degrees

Flute By Diameter Ratio

5xD

Flute Length (mm)

75.00

Material Grade

M35

Maximum Drilling Depth (Decimal Inch)

2.4610

Primary Workpiece Material

Aluminum

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.3281

Shank Diameter (Inch)

21/64

Shank Diameter (mm)

8.33

Shank Length (mm)

42.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.022 mm

Drill Bit Finish/Coating

Titanium Nitride

Maximum Drilling Depth (mm)

62.51

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 21/64" Dia, 118 degree, Cobalt TiN Coated, 117 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5519
