Screw Machine Length Drill Bit: 0.4291" Dia, 140 degree, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

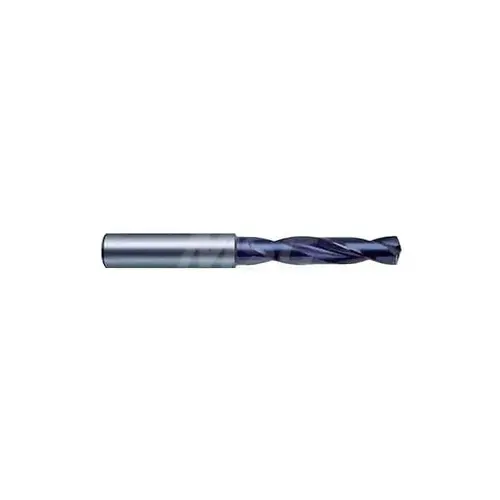

Guhring 9055100109000 Screw Machine Length Drill Bit: 0.4291" Dia, 140 degree, Solid Carbide Coated

Item #: 9055100109000 by Guhring

See reviewsSee reviews
See reviews summary
In Stock

$322.74

/each
SAVE UP TO 32.27
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 71 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

102.00

Number of Flutes

2

Standards

DIN 6537 K

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

5510

Point Type

SU

Drill Length Type

Screw Machine

Spiral Type

Regular

Coating/Finish

Coated

Coolant Through

Yes

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.4291

Drill Bit Size (mm)

10.90

Drill Bit Size Range (Decimal Inch)

0.4000 to 0.4500

Flute By Diameter Ratio

3xD

Flute Length (mm)

55.00

Material Grade

Submicron

Primary Workpiece Material

Cast Iron

Shank Diameter (mm)

12.00

Tool Performance

High Performance

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.007 to +0.025 mm

Drill Bit Size Range (mm)

9.50 to 11.00

Drill Point Angle

140

Maximum Drilling Depth (mm)

52.00

Specification Designation

DIN

Specification Number

DIN 6537K

Web Configuration

Parallel

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.4291" Dia, 140 degree, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5510
