Screw Machine Length Drill Bit: 0.4094" Dia, 118 degree, Cobalt Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

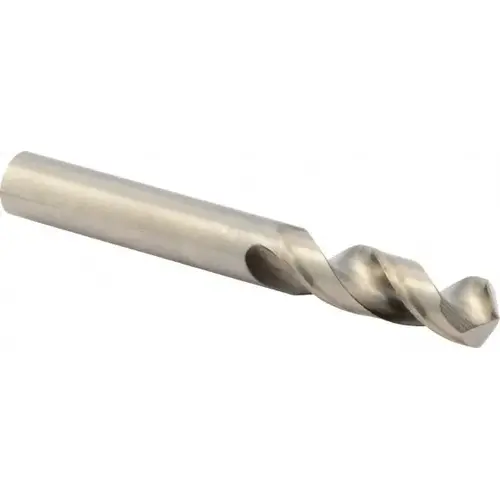

Guhring 9055240104000 Screw Machine Length Drill Bit: 0.4094" Dia, 118 degree, Cobalt Bright/Uncoated

Item #: 9055240104000 by Guhring

See reviewsSee reviews
See reviews summary

$36.35

/each
SAVE UP TO 3.63
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

89.00

Number of Flutes

2

Standards

DIN 1897

Tool Material

Cobalt

Cutting Direction

Right Hand

Series

5524

Point Type

Four Facet

Drill Length Type

Stub

Spiral Type

Regular

Coating/Finish

Bright/Uncoated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.4094

Drill Bit Size (mm)

10.40

Drill Bit Size Range (Decimal Inch)

0.4000 to 0.4500

Flute By Diameter Ratio

3xD

Flute Length (mm)

43.00

Material Grade

M35

Maximum Drilling Depth (Decimal Inch)

1.0790

Primary Workpiece Material

Aluminum

Shank Diameter (mm)

10.40

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.027 mm

Drill Bit Size Range (mm)

9.50 to 11.00

Drill Point Angle

118

Maximum Drilling Depth (mm)

27.40

Specification Designation

DIN

Specification Number

DIN 1897

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Screw Machine Length Drill Bit: 0.4094" Dia, 118 degree, Cobalt Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5524
