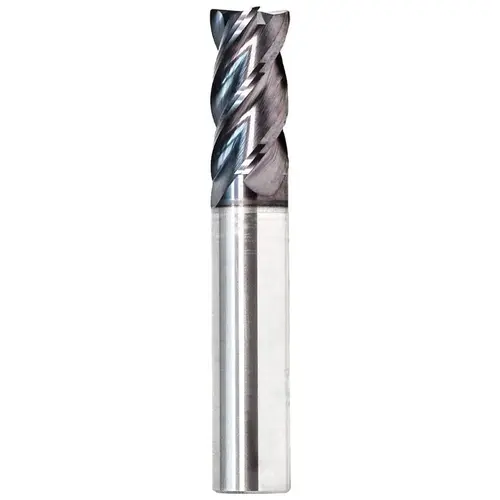

GWS 120546 Corner Radius End Mill: 3/8" Dia, 5/8" LOC, 0.015" Radius, 4 Flutes, Solid Carbide FX1
Item #: 120546 by GWS
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Use With
End Mill Toolholders
Flute Type
Spiral
Material Application
Steel
Shank Type
Straight-Cylindrical
End Type
Corner Radius
Overall Length (mm)
50.80mm
Number of Flutes
4
Pitch
Normal
Chipbreaker
No
Length Type
Short
Cutting Direction
Right Hand
Series
1030
Variable Helix
Yes
Coating/Finish
FX1
Coolant Through
No
Corner Radius (Decimal Inch)
0.0150
Length Of Cut (Decimal Inch - 4 Decimals)
0.0900in
Length of Cut (Inch)
5/8in
Material Grade
Submicron
Overall Length (Decimal Inch)
2.0000in
Overall Length (Inch)
2in
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.3750
Shank Diameter (Inch)
3/8in
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
Uncoated
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.3750in
Mill Diameter (Inch)
3/8in
Secondary Workpiece Material
Stainless Steel
Single Or Double End
Single
Variable Index
Yes
Length of Cut (mm)
15.87mm
Secondary Workpiece Material Code
M
Mill Diameter (mm)
9.53mm
Shank Diameter Tolerance
h6
Product Overview
Corner Radius End Mill: 3/8" Dia, 5/8" LOC, 0.015" Radius, 4 Flutes, Solid Carbide 2" OAL, 3/4" Shank Dia, 38 degree Helix, nACo Coated, Single End, Centercutting, Series 1035
