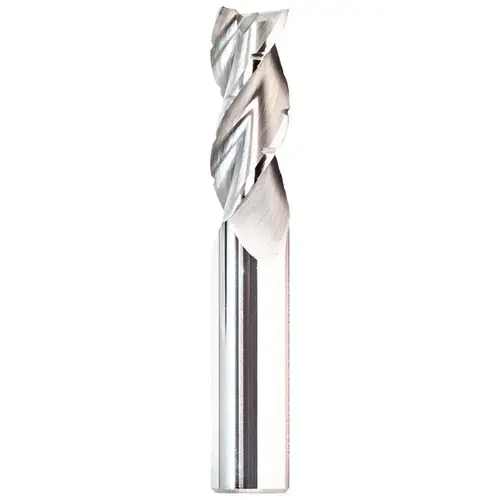

GWS 124047 Corner Radius End Mill: 1/4" Dia, 3/4" LOC, 0.03" Radius, 3 Flutes, Solid Carbide Bright/Uncoated
Item #: 124047 by GWS
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shank Type
Straight-Cylindrical
Shank Diameter (Inch)
1/4in
Variable Helix
No
Vendor Drop Ship
N
Length Of Cut (Decimal Inch - 4 Decimals)
0.2700in
Overall Length (Inch)
2-1/2in
For Use With
End Mill Toolholders
Mill Diameter (Inch)
1/4in
Material Grade
Submicron
Material Removal Type
Roughing
Coating/Finish
Bright/Uncoated
UNSPSC Code
27112803
Overall Length (mm)
63.50mm
Number of Flutes
3
Length of Cut (Inch)
3/4in
Mill Diameter (mm)
6.35mm
Chipbreaker
Yes
Mill Diameter (Decimal Inch)
0.2500in
Primary Workpiece Material
Non-Ferrous Metal
End Type
Corner Radius
Corner Radius (Decimal Inch)
0.0300
Flute Type
Spiral
Shank Diameter (mm)
6.35mm
Length Type
Standard
Extended Reach
No
Helix Style
High
Overall Length (Decimal Inch)
2.5000in
Coolant Through
No
End Mill Material
Solid Carbide
Coating Classification
Uncoated
Flute Direction
Right Hand
Centercutting
Yes
Cutting Direction
Right Hand
Material Application
Non-Ferrous Metal
Shank Diameter (Decimal Inch)
0.2500
Pitch
Coarse
Shank Diameter Tolerance
h6
Series
1015
Single Or Double End
Single
Variable Index
No
Length of Cut (mm)
19.05mm
Primary Workpiece Material Code
N
Product Overview
Corner Radius End Mill: 1/4" Dia, 3/4" LOC, 0.03" Radius, 3 Flutes, Solid Carbide 2-1/2" OAL, 1/4" Shank Dia, 37 degree Helix, Bright/Uncoated, Single End, Centercutting, Series 1035
