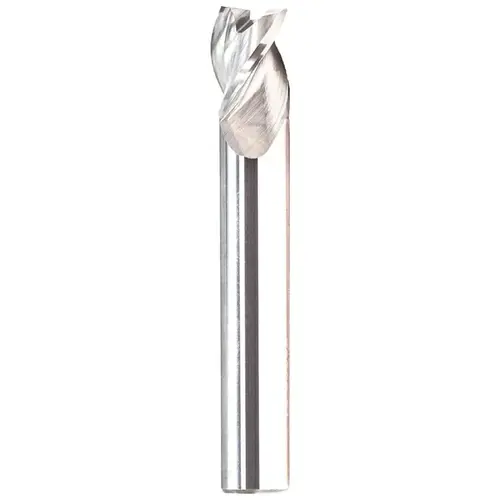

Corner Radius End Mill: 5/16" Dia, 13/16" LOC, 0.0600" Radius, 3 Flute, Solid Carbide NF1

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

GWS 314670 Corner Radius End Mill: 5/16" Dia, 13/16" LOC, 0.0600" Radius, 3 Flute, Solid Carbide NF1

Item #: 314670 by GWS

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$79.09

/each
SAVE UP TO 7.91

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

End Mill Toolholders

Flute Type

Spiral

Material Application

Non-Ferrous Metal

Shank Type

Straight-Cylindrical

End Type

Corner Radius

Number of Flutes

3

Pitch

Coarse

Chipbreaker

No

Length Type

Standard

Cutting Direction

Right Hand

Series

2030

Variable Helix

No

Coating/Finish

NF1

Coolant Through

No

Corner Radius (Decimal Inch)

0.0600

Length Of Cut (Decimal Inch - 4 Decimals)

2.5000

Length of Cut (Inch)

13/16

Manufacturers Catalog Number

35031213060C5

Material Grade

Submicron

Overall Length (Decimal Inch)

2.5

Overall Length (Inch)

2-1/2

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Shank Diameter (Decimal Inch)

0.3125

Shank Diameter (Inch)

5/16

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

High

Material Removal Type

Roughing

Mill Diameter (Decimal Inch)

0.3125

Mill Diameter (Inch)

5/16

Single Or Double End

Single

Variable Index

No

Shank Diameter Tolerance

h6

Product Overview
Corner Radius End Mill: 5/16" Dia, 13/16" LOC, 0.0600" Radius, 3 Flute, Solid Carbide 2-1/2" OAL, 5/16" Shank Dia, 37 deg Helix, NF1 Coated, Single End, Centercutting, Series 2030
