Features
Type
Concealed Floor
Color
Satin Chromium Plated
Color Code
626/US26D
Mounting Style
Center Hung
Hold Open
Without Hold Open
Fire Rated
No
Mounting Location
In Floor
Package Qty
1
Base Material
Brass or Bronze
Handing
Right Hand
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Finish
626 - Satin Chrome
Grade
Grade 1
ANSI/BHMA Standards
ANSI/BHMA A156.4, Grade 1
Door Swing
Single Acting
Maximum Door Width
48"
Door Weight
1000 lbs.
Sealed Closer
Yes
Handling
Right Hand
Cover Type
Cast iron cement case
Arm Function
Non-Hold Open
Duty Level
Heavy Duty
Extended Spindle
1 1/2"
587 Arm
Yes
Lighter Spring (ADA)
No
Hold Open Feature
No
Hang Type
Offset Hung
Parts and Accessories Type
Installation Accessories
Traffic Rating
High Traffic
Swing Degree
105
Product Overview

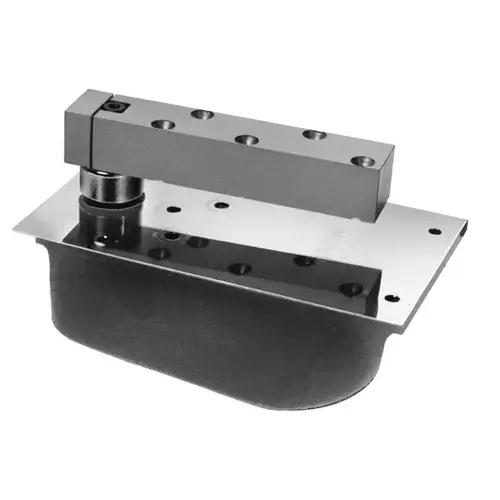

Extra Heavy Duty Center Hung Concealed Floor Closer, 105 Degree, No Hold Open, Right Hand, Satin Chromium Plated
Heavy-duty center hung single acting floor closer. For high traffic or extra heavy doors (2 In. min. thickness). For interior or exterior doors. Max door weight 1000 lbs. Max door size 4 Ft. 0 In. x 8 Ft. 6 In. Additional thrust bearing for greater load capacity. Built-in positive dead stop prevents door from swinging beyond the desired opening degree.
