The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs.(100kg)
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the DK Hardware Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
*The Adjustable Closing Speed valve uses a 3mm allen key and the hinge cover plate uses a 4mm allen key.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

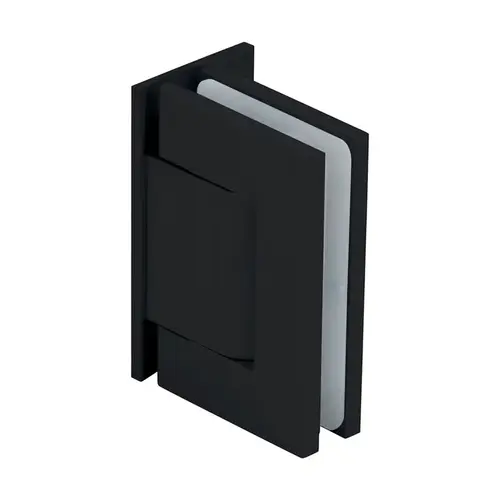

CRL H8211BTMBL Matte Black Vernon Wall Mount Offset Back Plate Hinge
Item #: H8211BTMBL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Self-Closing Glass Doors From 5/16" to 9/16" (8 to 13.52 mm) Thick
- Aluminum Body in Your Choice of Brite Chrome, Satin Nickel, and Satin Anodized Finishes
- Adjustable Closing Speed
- A Great Alternative to Floor Closers and Patch Fittings
Height
4-1/4
Finish
Matte Black
Mounting Type
Wall Mount
Material
Aluminum
Width
2-7/8 in. (73 mm)
Back Plate
Offset
Hold Open
No
Glazing Thickness
5/16 in. To 9/16 in. (8 mm To 14 mm)
Maximum Door Width
39 in. (991 mm)
Adjustable Closing Speed
Yes
Edge Profile
Square
Self-Closing
Yes
Finish/Color
Matte Black
Series
Vernon
Maximum Door Weight - 2 Hinges
220 lbs. (99.8 kg)
Product Overview
This CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings in and out a full 90 , with stop at 0 . Closing speed can be adjusted. Intended for doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg). Designed for use on interior door applications only.
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs.(100kg)
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the DK Hardware Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
*The Adjustable Closing Speed valve uses a 3mm allen key and the hinge cover plate uses a 4mm allen key.
