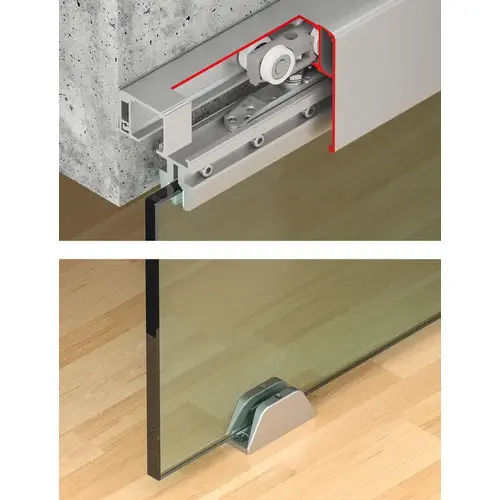

Hafele 940.83.036 Sliding Door Fitting Set D-Line11 80L, Without Track, 80kg Load Capacity, 556mm Running Gear with Soft Close
Item #: 940.83.036 by Hafele
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Number of Doors
1
Installation reference
No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Controller installation options
Ceiling installation, Wall mounting
For glass thickness with laminated glass
8 mm, 10 mm, 8.7 mm, 10.7 mm
For glass thickness with tempered safety glass
8 mm, 10 mm, 12.7 mm
Version
Shock absorber with retaining spring
Order reference
Please order glass clamp shoe, tracks, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
Running gear version
Running gear with ball bearing mounted rollers
For door weight
≤80 kg
Supplied with
2 running gears (1 with soft and self closing mechanism) 1 clear threshold floor guide 1 shock absorber with retaining spring 1 release device with stopper for soft and self closing mechanism
Adjustment facility
Height adjustment: ±4 mm
Soft closing mechanism
with soft and self closing mechanism on one side
Number of doors per system max.
1 to 2
For door material
glass
For Door Width
≥556 mm
Model
50L / 80L / 120L
Running position
Top
Area of application
For 1-leaf and 2-leaf sliding doors
