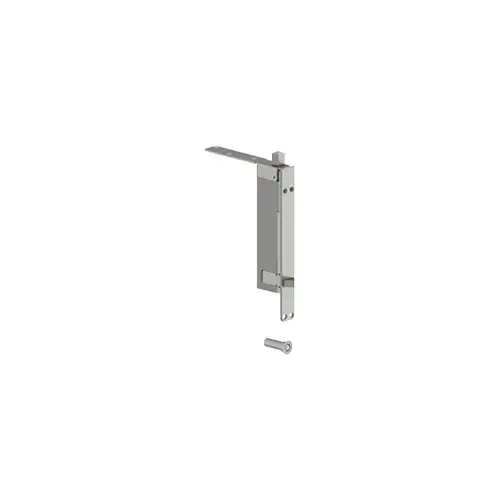

Hager 005626 295W US32D Satin Stainless Steel
Item #: 005626 by Hager
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
FINISHES - TRIM
US32D - SATIN STAINLESS STEEL
Mortise Strike Height
2-1/4" (56.8 mm)
Mortise Strike Width
15/16" (24.5 mm)
Bolt
Square bolt head 1/2" (12.5 mm)
Bolt Throw
3/4" (19 mm)
Faceplate
1" x 8-1/2" (25.5 mm x 216 mm)
Material
Stainless steel with steel components
Product Overview
Automatic Flush Bolt with Fire Bolt for Wood Doors
Notes:
Certifications:
Finishes:
US10B, US23D
Notes:
Notes:
- Fire bolt is activated at 428°F (220°C), projecting into active door, locking leaves together
- This combination eliminates the bottom flush bolt and eliminates floor preparation
- One set consist of one 291S top flush bolt and one 1-269-3927 bottom fire bolt
- Fully automatic - bolt retracts when active door is opened
- Bolt extends when active door is closed
- Non-handed
- Bolt heads are adjustable
- To only be used with non-beveled doors
Certifications:
- 20-minute fire rating for wood doors up to 4' wide x 8' tall
- ANSI A156.3 Type #25
Finishes:
US10B, US23D
Notes:
- Fire bolt is activated at 428°F (220°C), projecting into active door, locking leaves together
- This combination eliminates the bottom flush bolt and eliminates floor preparation
- One set consist of one 291S top flush bolt and one 1-269-3927 bottom fire bolt
- Fully automatic - bolt retracts when active door is opened
- Bolt extends when active door is closed
- Non-handed
- Bolt heads are adjustable
- To only be used with non-beveled doors
