Hager 060249-XCP2 12J US10B 2GDR. - pack of 2
Item #: 060249-XCP2 by Hager
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2-3/4" (70 mm)
Material
Aluminum, Brass, Bronze, Stainless Steel
Door Thickness
1-3/4" (45 mm)
Pull Clearance
1-3/4" (45 mm)
Pull Diameter
1" (25 mm)
Fasteners
Two 5/16" - 18 thru-bolts with washers
Notes
Back to back - see model 22
ENGRAVING AND MISC. - TRIM
STANDARD
MOUNTING - TRIM
STANDARD
PULL / PULL PLATE CTC in.
10
THICKNESS AND CTC - TRIM
2-3/8in. THICK WOOD DOOR
Handicap
2-1/2" (64 mm) Clearance available on special order. Add prefix "H" to number (H12L, for example).
FINISHES - TRIM
STANDARD
Offset
3" (76 mm)
Product Overview

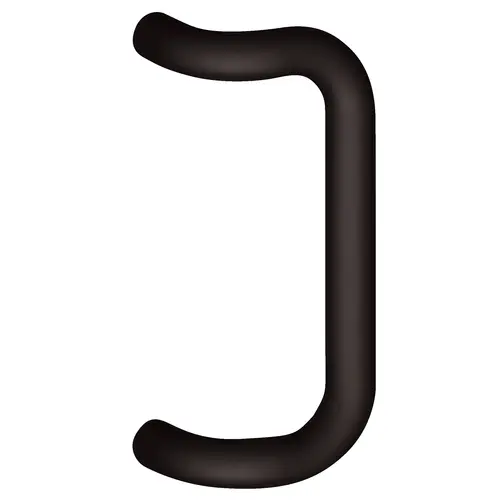

90° Offset Pull - Round
Clearance:
1-3/4"
Applications:
Notes:
Back to back - see model 22
Optional Features:
For 45° offset, add prefix "X" to number (i.e. X12E). If ordered with tempered glass, specify glass thickness and hole size. Other centers, sizes and finishes available via special order.
Certifications:
Finishes:
US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D
Clearance:
1-3/4"
Applications:
- 8” (203 mm) CTC- 12G
- 10” (254 mm) CTC- 12J
- 12” (305 mm) CTC- 12L
Notes:
Back to back - see model 22
Optional Features:
For 45° offset, add prefix "X" to number (i.e. X12E). If ordered with tempered glass, specify glass thickness and hole size. Other centers, sizes and finishes available via special order.
Certifications:
- EPD
- Meets ANSI A156.6 for J402 Pulls
Finishes:
US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D
