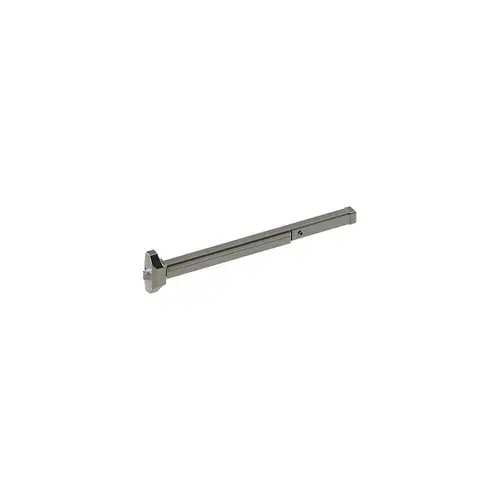

4701 RIM 36" US32D EO ANTI REV 2, Grade 1 Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 013647 4701 RIM 36" US32D EO ANTI REV 2, Grade 1 Satin Stainless Steel

Item #: 013647 by Hager

UPC #: 041359136477

See reviewsSee reviews
See reviews summary
In Stock

$359.72

/each
SAVE UP TO 35.97
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

  • 2-7/16" (62mm) in undogged position
  • 1-3/16" (30mm) in dogged position

Cover

Cast brass, bronze, stainless steel, zinc

Trim

  • Archer, August, or Withnell lever with escutcheon
  • Archer, August, Withnell lever with key-in-lever trim
  • Raised lip pull
  • Pull plate trim
  • Rim cylinder x optional pull

Door Thickness

1-3/4" (44 mm) - Standard

Door Width

  • 36" (914mm) field sizeable to 30" (762 mm) door
  • 48" (1219mm) field sizeable to 36" (914 mm) door

Dogging

Hex key dogging standard on panic-rated devices

Applications

Commercial

Fasteners

  • Wood and machine screws,
  • Thru-bolts

OriginalName

4701 RIM 36" US32D EO ANTI REV 2, Grade 1

Notes

  • Cylinders sold separately,
  • Recommended to be used on appropriately reinforced doors
  • Ideal for heavy duty commercial applications

Latchbolt Type

5/8" (16mm) throw, pullman type with automatic dead-latching, stainless steel

DOOR WIDTH in. - EXIT DEVICE

36

Cover Tube

Painted steel, plated steel, stainless steel

ACCESSORIES - EXITS

NOT APPLICABLE

FINISHES - EXITS

US32D - SATIN STAINLESS STEEL

MISC. - EXITS

ANTIMICROBIAL COATING

End Caps

Painted steel, plated steel, stainless steel

RATINGS - EXITS

STANDARD - NON-FIRE RATED

Product Overview
4700 Series Grade 1 Rim Exit Device
Applications:
Commercial
Certifications:
  • ANSI/BHMA A156.3-2014 Grade 1
  • UL305 Listed for panic hardware
  • UL/cUL Listed for up to 3 hours for "A" labeled doors
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Warnock Hersey listed for up to 3 hours with fire rated removable mullion
    Complies with ANSI 117.1 for accessible buildings and facilities

Finishes:
US3, US32D, ALM, DBZ
Functions:
  • 01 - Exit Only (device)
  • 02 - Dummy (47DT)
  • 03 - Night Latch (47KN)
  • 08 - Key in Lever, key locks or unlocks lever (47KE)
  • 14 - Blank Escutcheon, always operable (passage) (47BE)
  • See catalog 4700 How To Order for additional functions

Notes:
  • Cylinders sold separately,
  • Recommended to be used on appropriately reinforced doors
  • Ideal for heavy duty commercial applications

Warranty:
Five-years
Stile Width:
  • 4-1/2" (114mm) - minimum stile width required for single door and 5/8" (16mm) stop
  • 4-1/2" (114mm) - minimum stile width required for double door x surface vertical rod device with double door strike
  • 5" (127mm) - minimum stile width required for double doors with 2" (51mm) mullion
  • All stile widths are measured from door edge

Strikes:
  • Stainless steel with plated roller - included standard with panic devices
  • Solid stainless steel - included standard with fire-rated devices
  • Surface applied to frame with slotted holes for easy adjustment
  • Optional double door strike for use with surface vertical rod and rim devices
  • For Rim x Rim x Mullion the 4916 strike is required on a fire-rated opening
