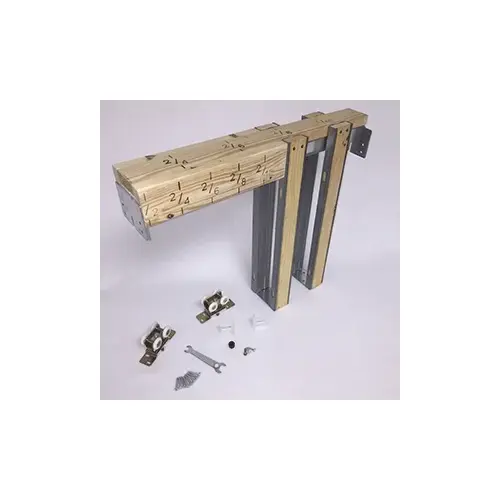

9630CS, 84", 150 LB, 2X4, COMMERCIAL POCKET KIT

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 020458 9630CS, 84", 150 LB, 2X4, COMMERCIAL POCKET KIT

Item #: 020458 by Hager

UPC #: 041359204589

See reviewsSee reviews
See reviews summary
In Stock

$220.40

/each
SAVE UP TO 22.04
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Door Thickness

For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick

Maximum Door Weight

150 lbs (68 kg)

Installation

For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately),Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width.

OriginalName

9630CS, 84", 150 LB, 2X4, COMMERCIAL POCKET KIT

Notes

  • For size options review the Size Options chart
  • For kit contents see Related Files

Door Specifications

For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick, up to 3'0" (914 mm) wide and 7'0" (2184 mm), For door weighing up to 150 lbs (68 kg)

SLIDING DOOR HEIGHT in.

84

SLIDING DOOR WIDTH in.

36

Product Overview
For 3'0" wide x 7'0" high doors up to 150 lbs (68 kg) per door.
Specifications:
  • Pre-assembled header assembly goes up quickly
  • Easy door installation and removal for painting and repair
  • 2 pair of wood split studs with wood inserts • size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height • steel encased for rigidity and to prevent fastener penetration into the pocket
  • Track header unit attaches to rough framing at both ends
  • Split studs can be nailed or screwed to track header

Notes:
  • For size options review the Size Options Chart
  • For kit contents see Related Files

Certifications:
  • Meets performance requirements for ANSI/BHMA 156.14 (Grade 1) f
  • Type: D02311-150
  • ADA Compliant

Options:
  • Soft Close mechanism (1-269-8651) is available, sold separately. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
  • See Related Files for additional information.
