Hager 148795 23Q US10B HC
Item #: 148795 by Hager
UPC #: 798550487951
In Stock $540.19 /each
Buying in bulk
Roll over image to zoom in
In Stock $540.19 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Projection
3" (76 mm)
Material
Aluminum, Brass, Bronze, Stainless Steel
Door Thickness
1-3/4" (45 mm)
Pull Clearance
1-3/4" (45 mm)
Pull CTC
18" (457 mm)
Pull Diameter
1-1/4" (32 mm)
SPECS :
Certifications:
- EPD
- Meets ANSI A156.6 for J402 Pulls
Clearance: 1-3/4"
Fasteners: 5/16""-18 thru bolts with finish washers
Notes:
- 2-1/2" (64 mm) clearance available on special orders
- Add prefix "H" to number (i.e., H23Q)
- If ordered with tempered glass, specify glass thickness and hole size
Offset: 3-3/4" (96 mm)
Options: For 45° offset, substitute "X" for first digit (i.e. X23Q)

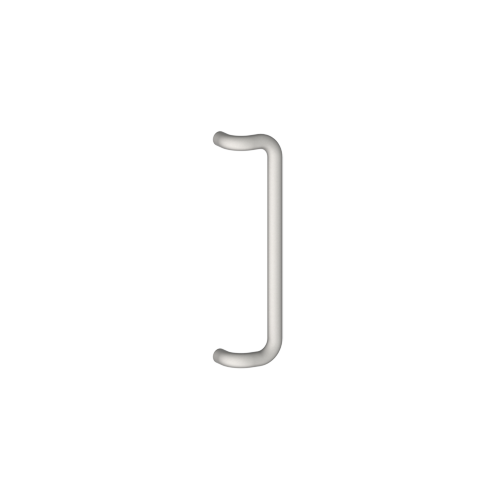

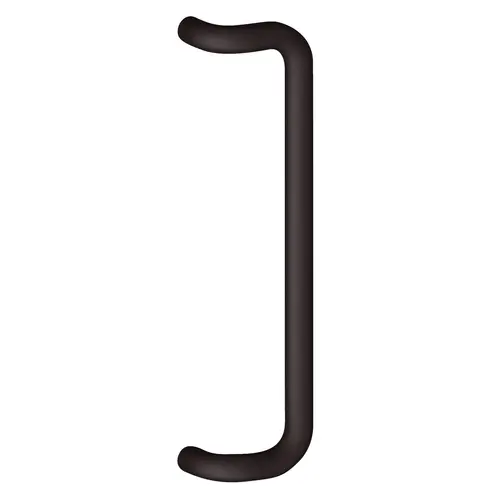

Product Description: 90° Round Offset Pull
